Husqvarna 365 H Chain Saw

Model: 365 H

Back To Assemblies

Save Part Not Listed?
product name

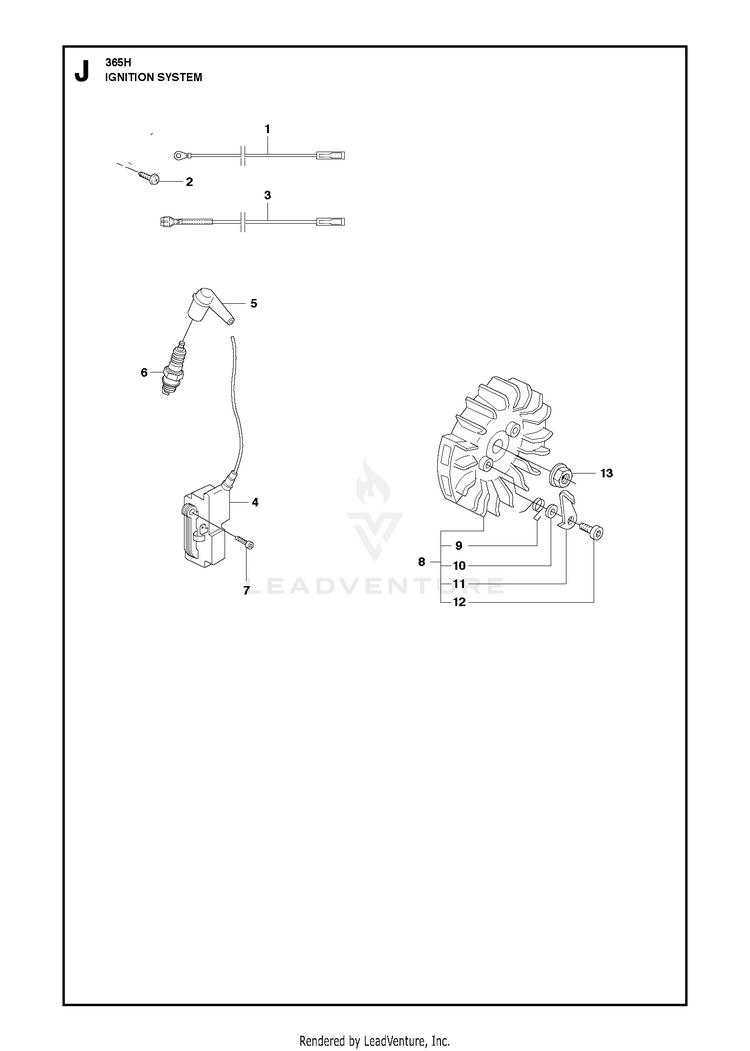

IGNITION SYSTEM

...
...
2
SCREW HUS-503212810
...
6
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 7Y HUS-503235111
...
4
IGNITION MODULE HUS-544047101
...
8
FLYWHEEL HUS-537051605
...
11
PAWL HUS-537015501
...
5
SPARK PLUG CONN. KIT HUS-501485402
...
12
SCREW M5X14 HUS-501819901
...
13
NUT W/ WASHER HUS-503220401
...
6
SPARK PLUG M14X1.25 NGK BPMR7A NGK BPMR7A HUS-503235111
...
9
SPRING HUS-501673501
...
10
WASHER HUS-503230042
...
3
CABLE HUS-544118501
...
1
CABLE HUS-544118401
...
7
SCREW HUS-503200220
