Husqvarna 365 Chain Saw

Model: 365

Back To Assemblies

Save Part Not Listed?
product name

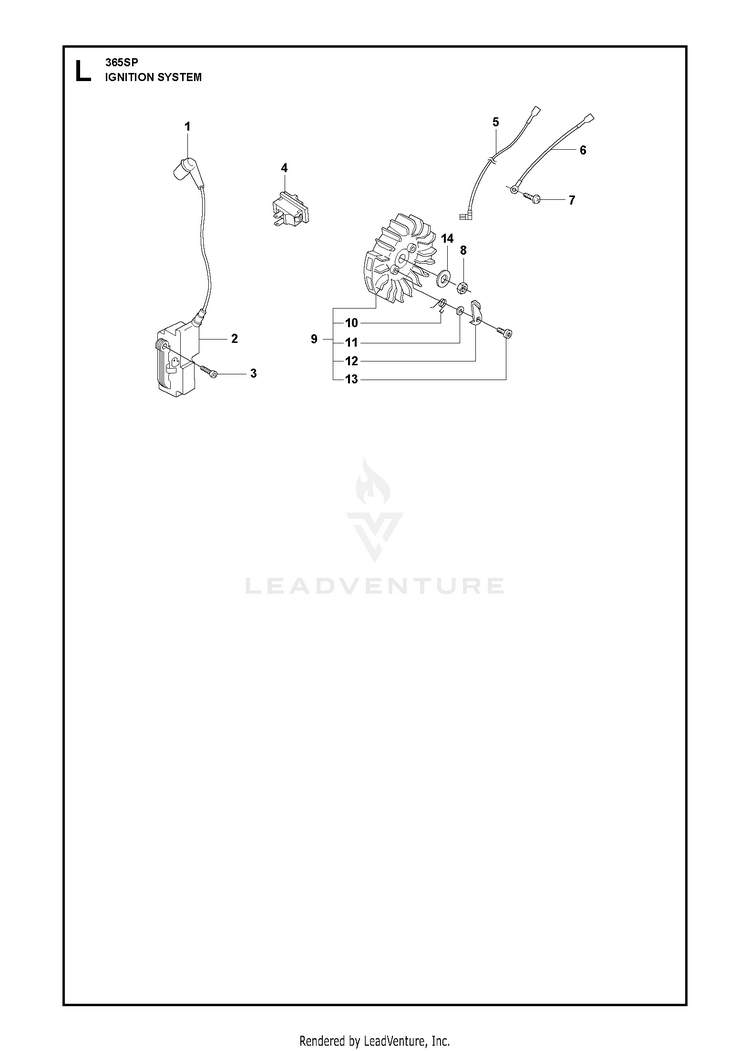

IGNITION SYSTEM 6

...
...
3
SCREW ITXSCM M5X20 T27 12.9 T HUS-582029701
...
13
SCREW M5X14 HUS-501819901
...
9
FLYWHEEL HUS-537051605
...
2
IGNITION MODULE HUS-586880304
...
10
SPRING HUS-501673501
...
5
WIRE HUS-503626101
...
6
CABLE HUS-503897601
...
8
NUT M8X1 HUS-503221011
...
12
PAWL HUS-537015501
...
11
WASHER HUS-503230042
...
1
SPARK PLUG CONN. KIT HUS-501485402
...
7
SCREW CITXPANT HUS-525887402
...
4
START/STOP SWITCH HUS-503718201
...
14
WASHER 8.4X16 HUS-503230101
