Husqvarna 362 XP (USA Only) (2005-05) Chain Saw

Model: 362 XP (USA Only) (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

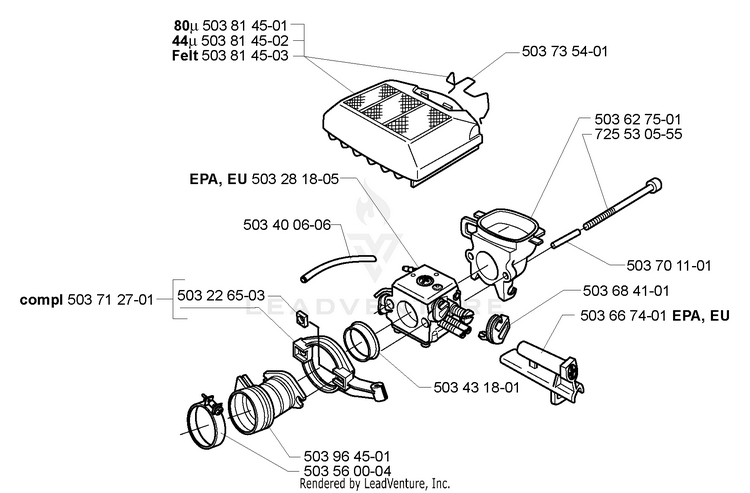

Air Filter/Carburetor

...
...
503226503
NUT HUS-503226503
...
503281805
CARBRETOR HD-12C H372 HUS-536033701
...
503400606
TUBE HUS-503400606
...
503431801
SLEEVE HUS-503431801
...
503560004
HOSE CLAMP HUS-505283309
...
503627501
FILTER HOLDER XP HUS-503627502
...
503667401
SLEEVE HUS-503667401
...
503684101
LEVER HUS-503684101
...
503701101
PIPE HUS-503701101
...
503712701
FLANGE HUS-503712701
...
503735401
AIR FILTER CLIP HUS-503735401
...
503814501
AIR FILTER ASSY HUS-575269101
...
503814502
AIR FILTER ASSY HUS-575269102
...
503814503
AIR FILTER ASSY HUS-575269103
...
503964501
INTAKE PIPE - EPA HUS-503964501
...
725530555
SCREW HUS-725530555
