Husqvarna 362 Chain Saw

Model: 362

Back To Assemblies

Save Part Not Listed?
product name

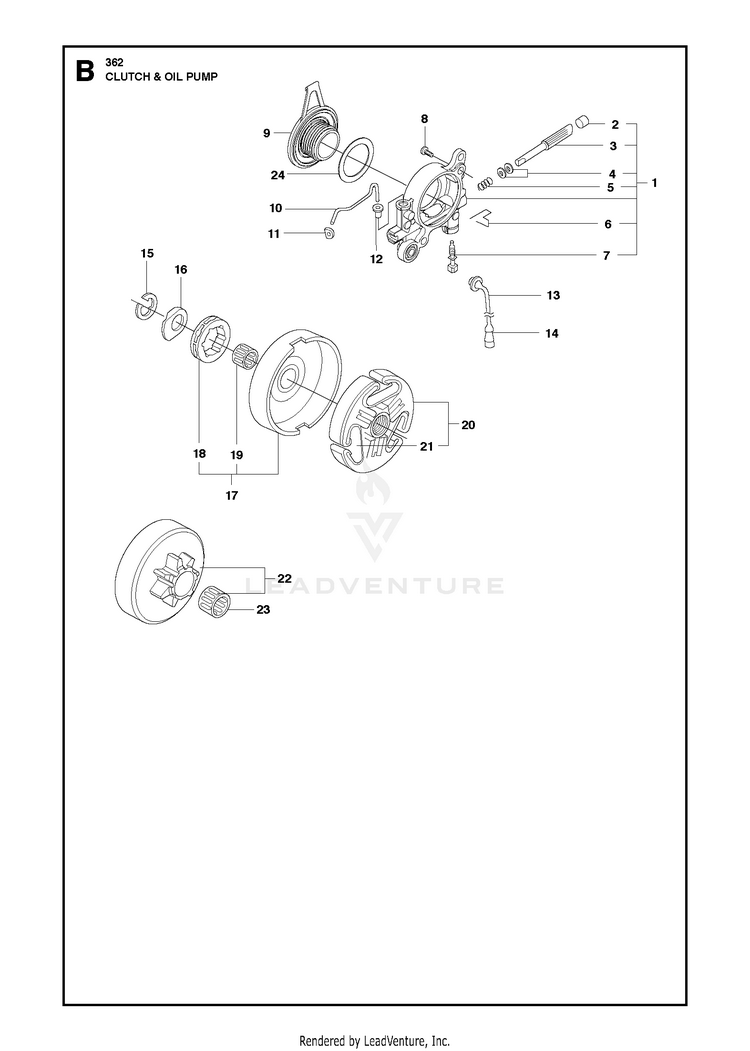

CLUTCH & OIL PUMP 7

...
...
21
SPRING HUS-537360601
...
2
PLUG HUS-503624901
...
13
OIL HOSE HUS-503426701
...
12
SEAL HUS-504300026
...
15
RETAINING RING HUS-503272101
...
4
WASHER 6.1X9 HUS-503230004
...
5
SPRING HUS-501615801
...
7
SCREW HUS-503811301
...
24
WASHER HUS-503230059
...
18
68210/RIM "3/8""x7T" HUS-640200214
...
9
Pumps HUS-582270107
...
19
CLUTCH DRUM BEARING HUS-503432001
...
22
CLUTCH DRUM "3/8""x7T" HUS-503861703
...
17
CLUTCH DRUM ASSY "3/8""x8T" HUS-586980602
...
14
OIL SCREEN HUS-501544102
...
10
PIPE HUS-503774301
...
8
SCREW MC6S 5X16 HUS-725532955
...
17
CLUTCH DRUM ASSY "3/8""x7T" HUS-586980601
...
11
GROMMET HUS-503644701
...
20
CLUTCH ASSY M14X1.25-6H HUS-586798401
...
1
OIL PUMP HUS-503521305
...
6
SPRING CLIP HUS-503813001
...
16
WASHER HUS-503752401
...
23
CLUTCH DRUM BEARING HUS-503432001
...
3
PUMP PISTON HUS-503521501
...
18
22273 POWER MATE RIM "3/8""x8T" HUS-640200216
