product name

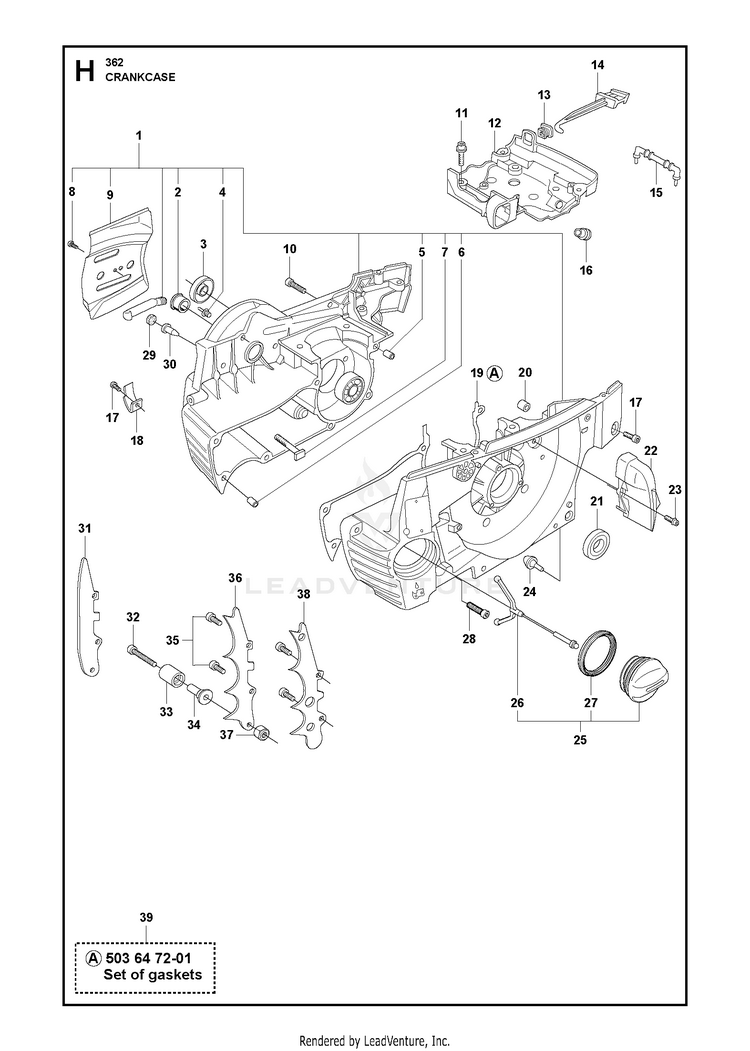

Husqvarna 362 Chain Saw

Model: 362

Back To Assemblies

Save Part Not Listed?
product name

CRANKCASE 5

...
...
3
SEAL HUS-503260301
...
4
PIN HUS-503751801
...
25
TANK CAP HUS-537215207
...
15
SUPPORT HUS-579468901
...
1
CRANKCASE ASSY HUS-503626819
...
12
CARBURETTOR AREA BASE ASSY HUS-597989501
...
14
CONTROL HUS-503627701
...
36
FELLING DOG HUS-537017101
...
17
SCREW ITXSCM M5X20 T27 10.9 Z HUS-525824913
...
19
GASKET HUS-503627201
...
38
FELLING DOG HUS-503647902
...
21
SEAL RING HUS-505275719
...
26
TANK LOCK HUS-503578901
...
8
SCREW CITXPANT HUS-525887402
...
39
GASKET SET A = Set of gaskets HUS-503647201
...
5
GUIDE BUSHING HUS-593806001
...
35
SCREW ITXPANM M5X16 T27 10.9 HUS-575793501
...
20
PROTECTOR HUS-503857301
...
32
SCREW HUS-525755103
...
9
PLATE Up to serial number 20182009999 HUS-537046601
...
24
BUFFER HUS-503846101
...
27
SEALING HUS-589241101
...
10
SCREW ITXSCM LIMITER M5X20/8 T HUS-586445401
...
7
BOLT HUS-537051301
...
13
GROMMET HUS-503734401
...
11
SCREW ITXSCFM M5X12 T27 12.9 HUS-525755201
...
22
JET HUS-503628401
...
23
SCREW ITXSCFM M5X12 T27 12.9 HUS-525755201
...
33
SPACER HUS-537024401
...
37
NUT HUS-503222401
...
30
VALVE-CHECK (DUCKBILL) HUS-530026119
...
9
BAR PLATE From serial number 20182100001 HUS-537013702
...
34
CHAIN CATCHER HUS-537089201
...
28
SCREW ITXSCM M5X32.3 T27 TIP HUS-575791202
...
29
SINTERED BRONZE FILTER HUS-537403502
...
18
CHAIN CATCHER HUS-501686801
...
16
GROMMET HUS-537095401
...
2
BUSHING HUS-503967001
...
31
BUMPER HUS-537042901
...
6
GUIDE BUSHING HUS-593806001
