Husqvarna 362 Chain Saw

Model: 362

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

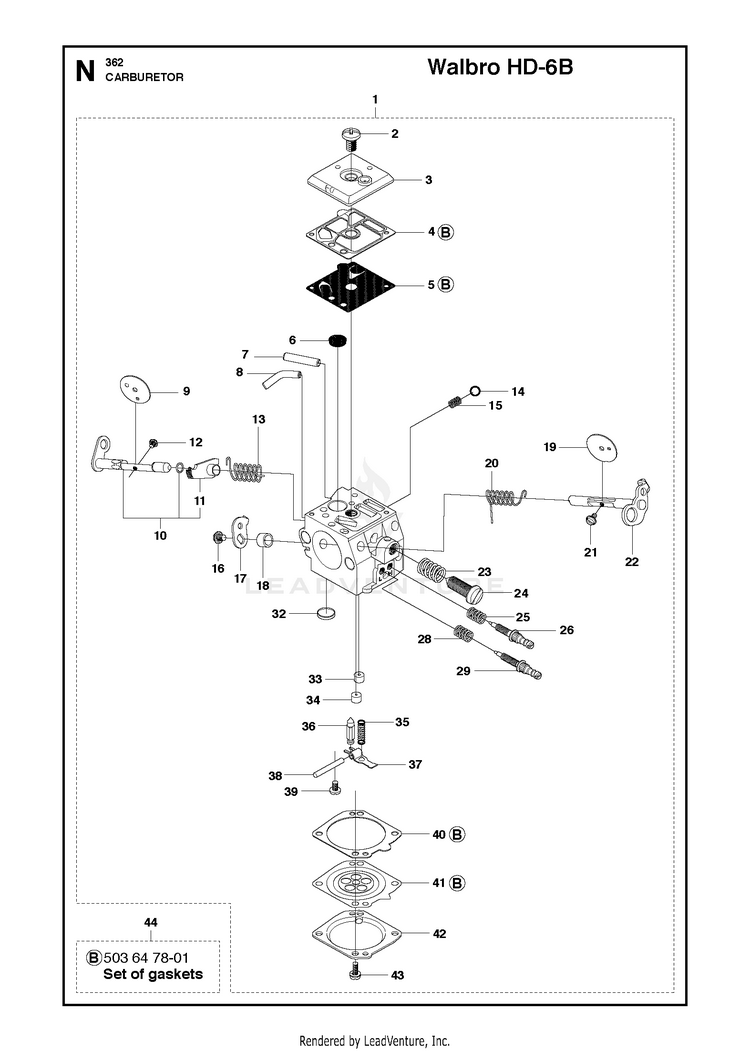

CARBURETOR 2

...
...
23
IDLE SCREW SPRING HUS-530035121
...
29
IDLING SCREW HUS-504027213
...
16
SCREW HUS-501468701
...
22
SHAFT HUS-503799901
...
14
BALL HUS-501468501
...
13
SPRING HUS-537019001
...
40
GASKET HUS-504130905
...
1
CARBRETOR HD-12C H372 HUS-536033701
...
17
LEVER HUS-503799601
...
28
SPRING HUS-501667701
...
42
IMPULSE COVER HUS-537077601
...
24
SCREW HUS-503800801
...
39
SCREW HUS-505316717
...
33
NOZZLE HUS-503800401
...
44
GASKET SET B = Set of gaskets HUS-503647801
...
43
SCREW HUS-503584601
...
5
PUMP DIAPHRAGM HUS-502254701
...
2
SCREW HUS-501466901
...
26
SCREW HUS-503801101
...
25
SPRING HUS-501667701
...
15
SPRING HUS-501468401
...
35
SPRING HUS-503562401
...
18
BUSHING HUS-503801501
...
36
INLET NEEDLE HUS-503563401
...
19
THROTTLE FLAP HUS-503800001
...
32
WELCH PLUG HUS-503574201
...
10
CHOKE SHAFT HUS-537019101
...
20
SPRING HUS-503800901
...
38
FULCRUM PIN HUS-505520125
...
34
JET HUS-503688201
...
3
COVER HUS-503799801
...
21
SCREW SHUTTERS HUS-530035015
...
37
LEVER HUS-501668301
...
6
FUEL INLET SCREEN HUS-501666101
...
11
LEVER HUS-537018901
...
8
TUBE HUS-503801401
...
4
GASKET, PUMP SIDE HUS-501666901
...
7
RP NIPPLE HUS-503855901
...
9
CHOKE FLAP HUS-503855801
...
12
SCREW HUS-501468701
...
41
GASKET HUS-503800701
