Husqvarna 362 (2011-02) Chain Saw

Model: 362 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

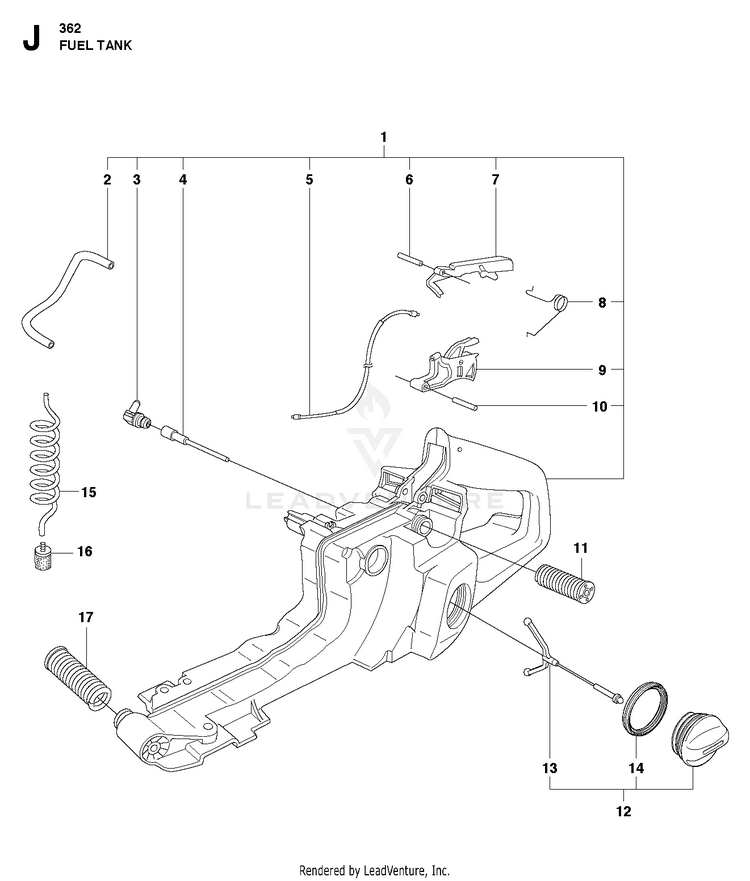

FUEL TANK

...
...
1
FUEL TANK HUS-544114013
...
2
FUEL HOSE STRAIGHT 105 . 1 HUS-581756106
...
3
CONNECTOR . 1 HUS-537099301
...
4
TANK VALVE . 1 HUS-537092201
...
5
WIRE . 1 HUS-503717601
...
6
PIN . 1 HUS-720182520
...
7
THROTTLE CATCH . 1 HUS-503556601
...
8
SPRING . 1 HUS-503736401
...
9
THROTTLE TRIGGER . 1 HUS-503829801
...
10
PIN CPH8 4X20 . 1 HUS-720127220
...
11
ANTIVIBE MOUNT Std HUS-503895601
...
11
ANTIVIBE MOUNT Hard HUS-503895602
...
12
TANK CAP HUS-537215207
...
13
TANK LOCK . 12 HUS-503578901
...
14
SEALING . 12 HUS-589241101
...
15
KIT HOSE SPIRAL 300 HUS-591375201
...
16
KIT FUEL FILTER HUS-591375401
...
17
Absorbers Std HUS-503637603
...
17
Absorbers Hard HUS-503637604
