Husqvarna 357 XP (20041800001-20050600000) Chain Saw

Model: 357 XP (20041800001-20050600000)

Back To Assemblies

Save Part Not Listed?
product name

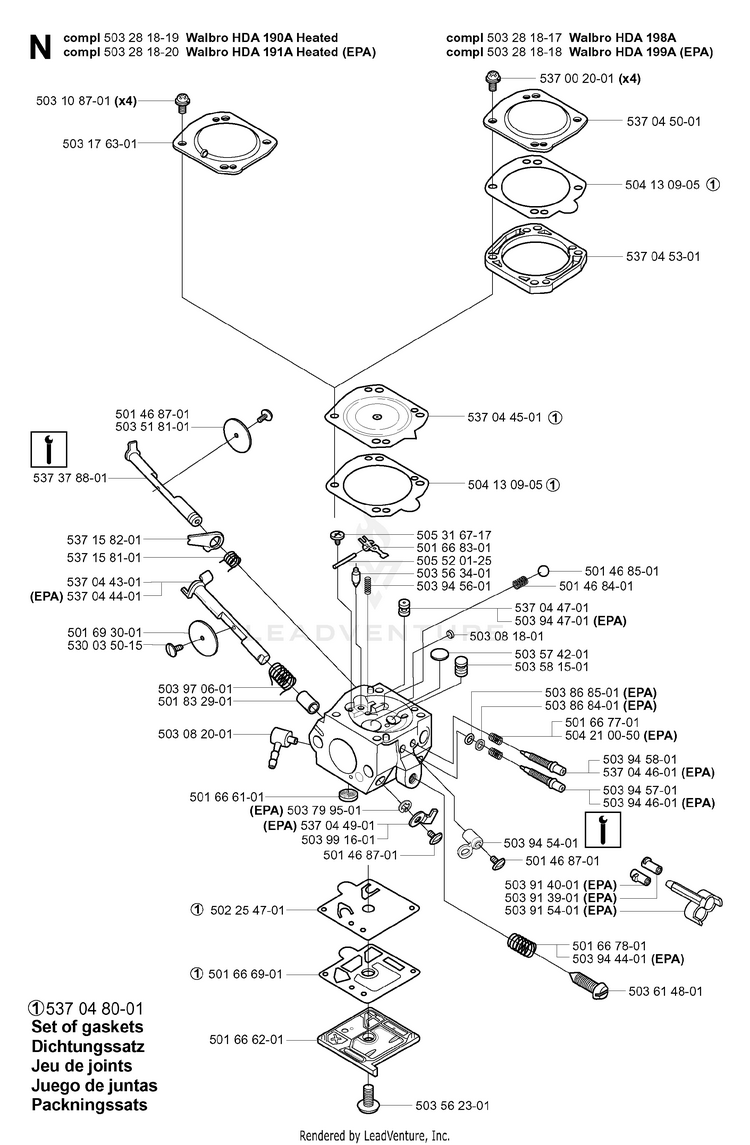

CARBURETOR DETAILS

...
...
501 66 83-01
LEVER HUS-501668301
...
503 28 18-19
CARBURETOR W/SLEEVE WALBRO HDA 190A HEATED HUS-505203002
...
537 04 44-01
THROTTLE SHAFT EPA HUS-537044401
...
503 91 39-01
LIMITER CAP EPA HUS-503913901
...
503 17 63-01
COVER METERING DIAPHR. HUS-503176301
...
501 66 69-01
GASKET, PUMP SIDE 537 04 80-01 SET OF GASKETS HUS-501666901
...
505 52 01-25
FULCRUM PIN HUS-505520125
...
501 66 62-01
COVER, PUMP SIDE HUS-501666201
...
503 91 54-01
CAP EPA HUS-503915401
...
503 94 46-01
LOW SPEED NEEDLE EPA HUS-505554601
...
503 56 23-01
Screw HUS-503562301
...
503 86 84-01
Washer EPA HUS-503868401
...
501 83 29-01
BUSHING HUS-501832901
...
503 99 16-01
LEVER HUS-503991601
...
537 15 81-01
SPRING HUS-537158101
...
537 04 46-01
NEEDLE HIGH SPEED EPA HUS-537044601
...
537 04 47-01
JET HUS-537044701
...
503 79 95-01
CLIP EPA HUS-503799501
...
501 46 87-01
SCREW HUS-501468701
...
505 31 67-17
SCREW HUS-505316717
...
537 15 82-01
LEVER HUS-537158201
...
537 04 53-01
PLATE HUS-537045301
...
537 37 88-01
CHOKE SHAFT HUS-537378801
...
501 69 30-01
THROTTLE FLAP HUS-501693001
...
501 46 84-01
SPRING HUS-501468401
...
501 66 61-01
FUEL INLET SCREEN HUS-501666101
...
503 94 54-01
LEVER HUS-503945401
...
503 08 18-01
Washer HUS-503081801
...
503 97 06-01
RETURN SPRING HUS-503970601
...
503 94 44-01
SPRING EPA HUS-503944401
...
503 56 34-01
INLET NEEDLE HUS-503563401
...
537 04 43-01
THROTTLE SHAFT HUS-537044301
...
501 66 78-01
IDLE SCREW SPRING HUS-530035121
...
503 58 15-01
JET HUS-503581501
...
503 08 20-01
NIPPLE HUS-503082001
...
503 57 42-01
WELCH PLUG HUS-503574201
...
502 25 47-01
PUMP DIAPHRAGM 537 04 80-01 SET OF GASKETS HUS-502254701
...
537 04 50-01
COVER HUS-537045001
...
504 13 09-05
GASKET 537 04 80-01 SET OF GASKETS HUS-504130905
...
501 46 85-01
BALL HUS-501468501
...
503 10 87-01
SCREW HUS-503584601
...
504 21 00-50
NEEDLE SPRING EPA HUS-530035293
...
537 00 20-01
SCREW HUS-537002001
...
503 94 57-01
IDLE NEEDLE HUS-503945701
...
503 94 47-01
JET EPA HUS-503944701
...
503 91 40-01
LIMITER CAP EPA HUS-503914001
...
537 04 49-01
STOP EPA HUS-537044901
...
503 28 18-18
CARBURETOR W/SLEEVE WALBRO HDA 199A (EPA) HUS-505203002
...
530 03 50-15
SCREW SHUTTERS HUS-530035015
...
537 04 45-01
DIAPHRAM 537 04 80-01 SET OF GASKETS HUS-537044501
...
501 66 77-01
SPRING HUS-501667701
...
503 28 18-17
CARBURETOR WALBRO HDA 198A HUS-503281817
...
503 86 85-01
O-Ring EPA HUS-503868501
...
503 61 48-01
IDLE SPEED SCREW HUS-503614801
...
503 51 81-01
THROTTLE VALVE HUS-503518101
...
503 28 18-20
CARBURETOR W/SLEEVE WALBRO HDA 191A HEATED (EPA) HUS-505203002
...
503 94 58-01
NEEDLE ADJUSTING HUS-503945801
...
503 94 56-01
SPRING HUS-503945601
