Husqvarna 357 XP (20031400001-20041800000) Chain Saw

Model: 357 XP (20031400001-20041800000)

Back To Assemblies

Save Part Not Listed?
product name

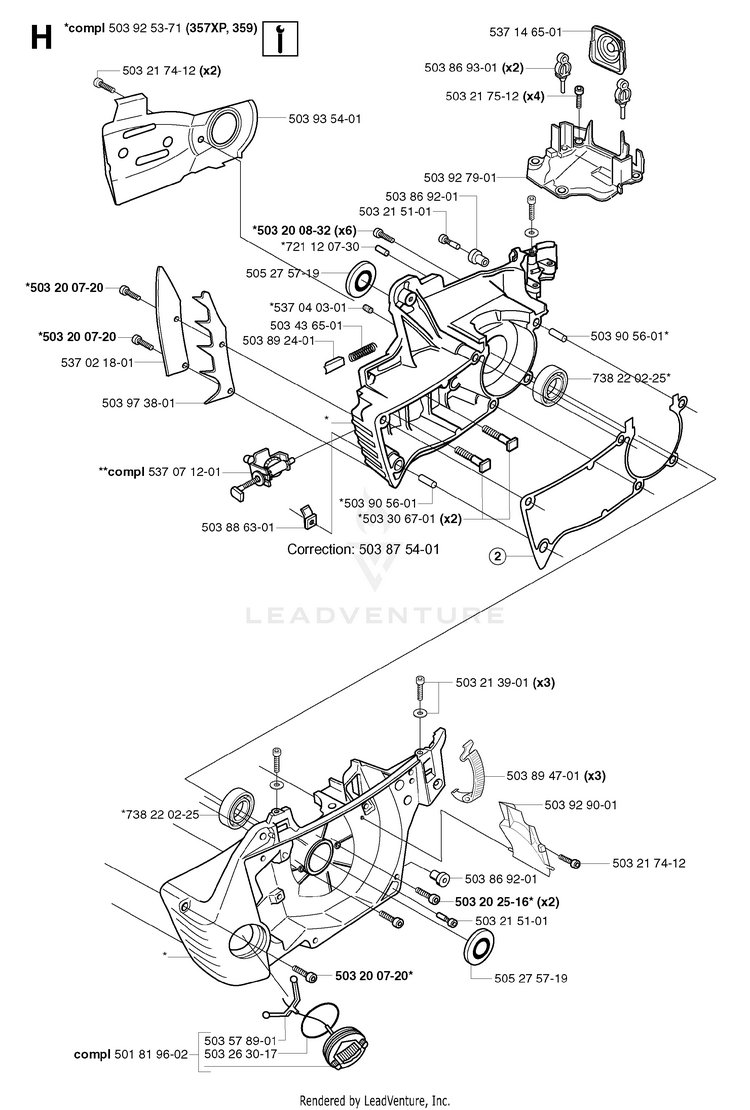

CRANKCASE

...
...
503 93 54-01
PLATE HUS-503935401
...
537 02 18-01
BUMPER HUS-537021801
...
503 20 25-16
SCREW HUS-503202516
...
503 89 47-01
BUCKLE ORANGE HUS-503894701
...
503 43 65-01
LOCK SPRING HUS-503436501
...
503 20 07-20
SCREW HUS-503200220
...
501 81 96-02
TANK CAP HUS-537215207
...
721 12 07-30
PIN HUS-721120730
...
503 97 38-01
FELLING DOG HUS-503973801
...
537 04 03-01
VALVE HUS-537040301
...
503 92 53-71
CRANKCASE ASSY 357XP, 359 HUS-503925305
...
503 21 39-01
SCREW HUS-503213901
...
503 86 92-01
MOVEMENT LIMITER HUS-503869201
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 90 56-01
Sleeve HUS-503905601
...
503 26 30-17
O-RING HUS-503263017
...
503 86 93-01
DAMPNER HUS-597909701
...
738 22 02-25
BALL BEARING-6202-C3 SKF HUS-738220225
...
503 87 54-01
BOLT CORRECTION: HUS-503875401
...
503 88 63-01
CHAIN CATCHER HUS-503886301
...
505 27 57-19
SEAL RING HUS-505275719
...
503 92 90-01
JET HUS-503929001
...
503 21 51-01
SCREW HUS-503215101
...
503 89 24-01
CATCH HUS-503892401
...
503 92 79-01
BASE HUS-503927903
...
503 21 74-12
SCREW HUS-503217412
...
537 07 12-01
CHAIN TENSIONER HUS-537071201
...
537 14 65-01
BELLOWS HUS-537146501
...
503 21 75-12
SCREW HUS-503217512
...
503 21 74-12
SCREW HUS-503217412
...
503 20 08-32
SCREW HUS-503200832
