Husqvarna 357 XP (20010100001-20014000000) Chain Saw

Model: 357 XP (20010100001-20014000000)

Back To Assemblies

Save Part Not Listed?
product name

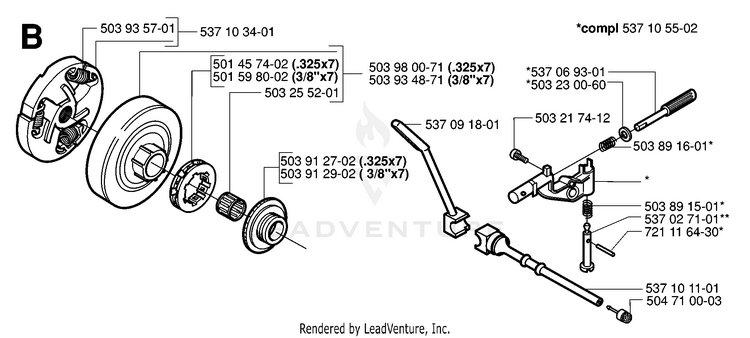

CLUTCH & OIL PUMP

...
...
504 71 00-03
OIL PLUMMET HUS-504710003
...
503 89 15-01
SPRING HUS-503891501
...
503 21 74-12
SCREW HUS-503217412
...
503 91 29-02
PUMP GEAR 3/8 HUS-503912903
...
501 59 80-02
68210/RIM 3/8 HUS-640200214
...
503 93 48-71
CLUTCH DRUM 3/8 HUS-503934871
...
537 10 11-01
HOSE HUS-537101102
...
537 10 34-01
CLUTCH CPL HUS-587691701
...
721 11 64-30
PIN HUS-721116430
...
537 10 55-02
OIL PUMP ASSY HUS-544180104
...
503 23 00-60
WASHER HUS-503230060
...
537 06 93-01
PUMP PISTON HUS-537069302
...
537 09 18-01
HOSE HUS-537091801
...
503 89 16-01
SPRING HUS-503891601
...
503 25 52-01
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
503 93 57-01
SPRING HUS-537166901
...
503 91 27-02
PUMP GEAR .325 HUS-503912703
...
537 02 71-01
ADJUSTER HUS-537027101
...
503 98 00-71
CLUTCH DRUM .325 HUS-503980002
...
501 45 74-02
11892 POWER MATE RIM .325 HUS-640200010
