Husqvarna 357 (2010-02) Chain Saw

Model: 357 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

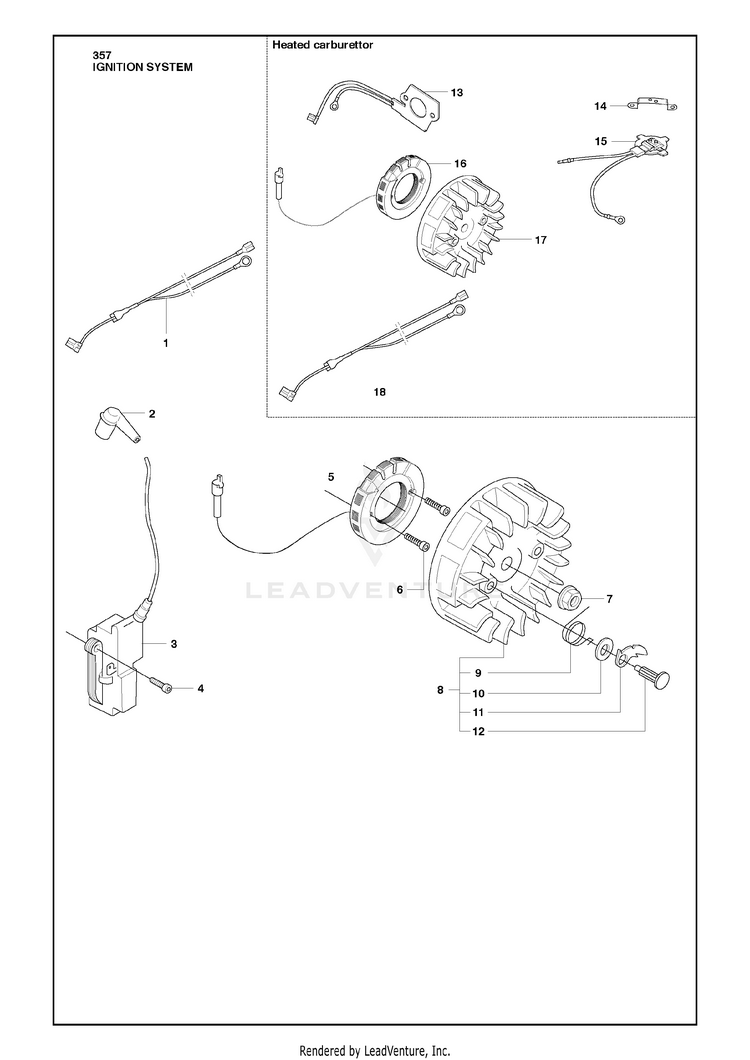

Ignition System

...
...
1
CABLE ASSY HUS-503898701
...
2
SPARK PLUG CONN. KIT HUS-501485402
...
3
IGNITION MODULE HUS-544047001
...
4
SCREW HUS-503215525
...
5
GENERATOR G HUS-537330201
...
6
SCREW HUS-503202516
...
7
NUT W/ WASHER HUS-503220401
...
8
FLYWHEEL HUS-503921801
...
8
FLYWHEEL G HUS-503921804
...
9
SPRING HUS-503818101
...
10
WASHER HUS-503230042
...
11
PAWL HUS-537103601
...
12
SCREW HUS-501819903
...
13
HEATING PLATE G HUS-504043201
...
14
RETAINER G HUS-537060402
...
15
THERMOSTAT ASSY G HUS-501986301
...
16
GENERATOR STATOR G, Heated carburettor HUS-502609601
...
17
FLYWHEEL G, Heated carburettor HUS-503921805
...
18
WIRING ASSY HUS-503898705
