Husqvarna 357 (2010-02) Chain Saw

Model: 357 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

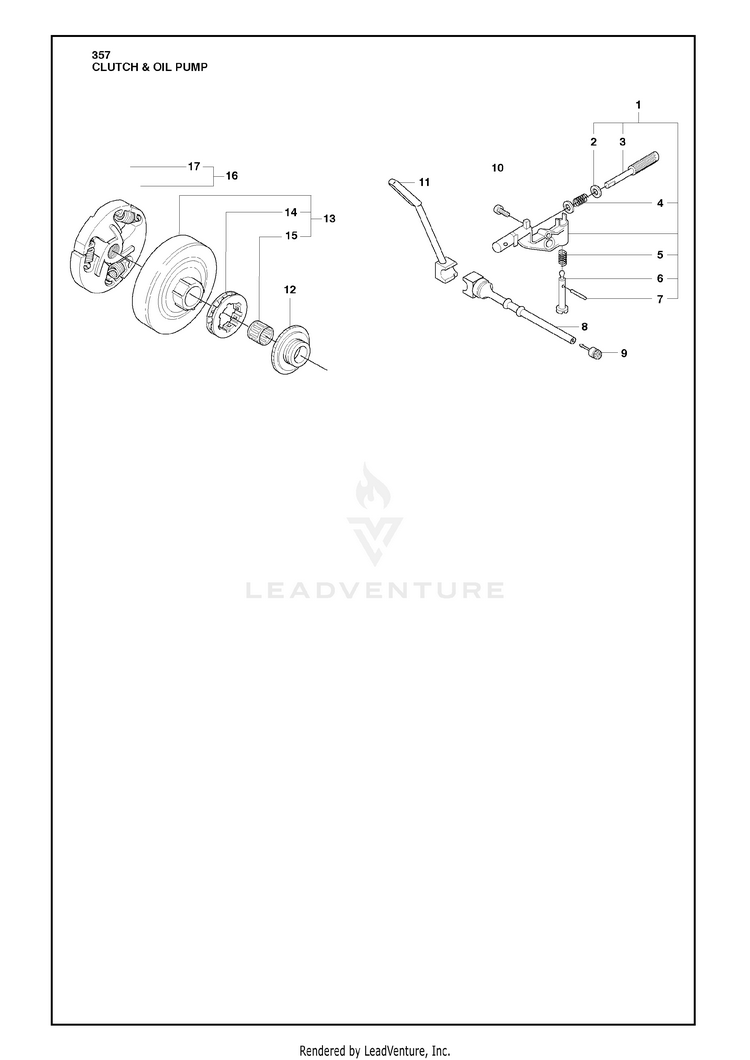

Clutch & Oil Pump

...
...
1
OIL PUMP ASSY HUS-544180104
...
2
WASHER HUS-503230060
...
3
PUMP PISTON HUS-537069302
...
4
SPRING HUS-503891601
...
5
SPRING HUS-503891501
...
6
ADJUSTER HUS-537027101
...
7
PIN HUS-721116430
...
8
HOSE HUS-537101102
...
9
OIL PLUMMET HUS-503967501
...
10
SCREW HUS-503217412
...
11
HOSE HUS-537091801
...
12
PUMP GEAR .325x7T HUS-503912703
...
12
PUMP GEAR 3/8"x7T HUS-503912903
...
13
CLUTCH DRUM .325x7T HUS-503980002
...
13
CLUTCH DRUM 3/8"x7T HUS-503934871
...
14
11892 POWER MATE RIM .325x7T HUS-640200010
...
14
68210/RIM 3/8"x7T HUS-640200214
...
15
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
16
CLUTCH CPL HUS-587691701
...
17
SPRING HUS-537166901
