Husqvarna 357 (2010-02) Chain Saw

Model: 357 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

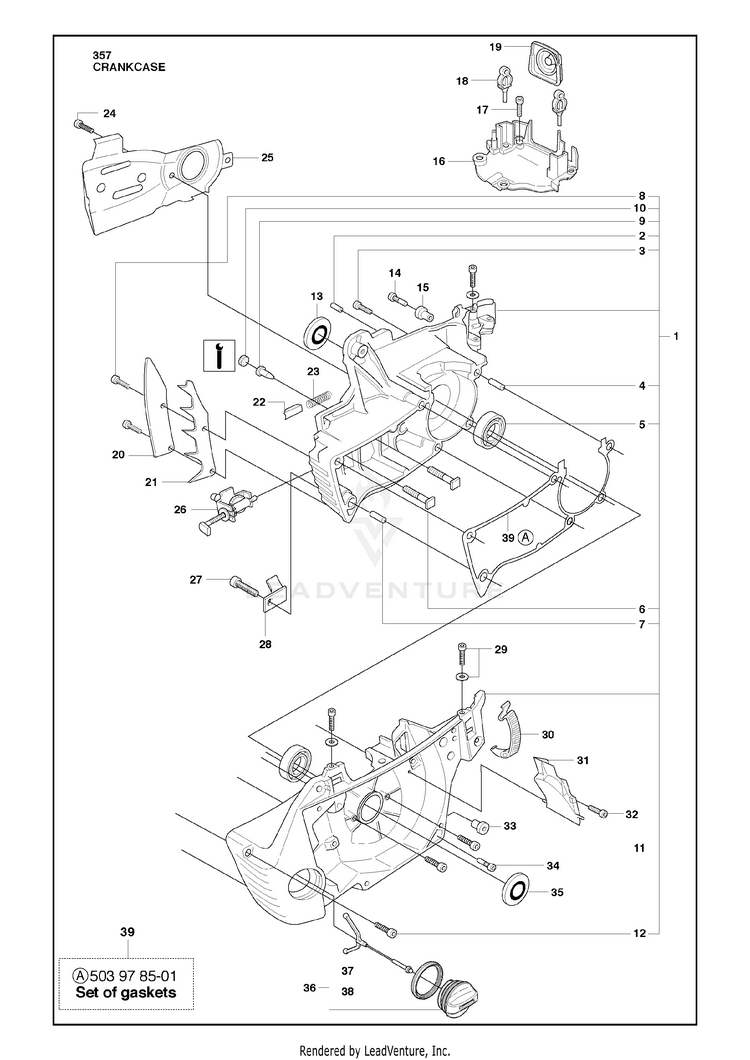

Crankcase

...
...
1
HUS-503925303
...
2
PIN HUS-721120730
...
3
SCREW HUS-503200832
...
4
Sleeve HUS-503905601
...
5
BALL BEARING-6202-C3 SKF HUS-738220225
...
6
BOLT HUS-503875401
...
7
Sleeve HUS-503905601
...
8
SCREW HUS-503200776
...
9
VALVE-CHECK (DUCKBILL) HUS-530026119
...
10
SINTERED BRONZE FILTER HUS-537403502
...
11
SCREW HUS-503202516
...
12
SCREW HUS-503200220
...
13
SEAL RING HUS-505275719
...
14
SCREW HUS-503215101
...
15
MOVEMENT LIMITER HUS-503869201
...
16
BASE HUS-503927903
...
17
SCREW HUS-503217512
...
18
DAMPNER HUS-597909701
...
19
BELLOWS HUS-537146501
...
20
BUMPER HUS-537021801
...
21
FELLING DOG HUS-503973801
...
22
CATCH HUS-503892401
...
23
LOCK SPRING HUS-503436501
...
24
SCREW HUS-503217412
...
25
PLATE HUS-503935401
...
26
CHAIN TENSIONER HUS-537071201
...
27
SCREW HUS-503218876
...
28
CHAIN CATCHER HUS-537377901
...
29
SCREW HUS-503213901
...
30
BUCKLE ORANGE HUS-503894701
...
31
JET HUS-503929001
...
32
SCREW HUS-503217412
...
33
MOVEMENT LIMITER HUS-503869201
...
34
SCREW HUS-503215101
...
35
SEAL RING HUS-505275719
...
36
TANK CAP HUS-537215207
...
37
TANK LOCK HUS-503578901
...
38
SEALING HUS-589241101
...
39
GASKET SET A = Set of gaskets HUS-503978501
