Husqvarna 357 (2010-02) Chain Saw

Model: 357 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

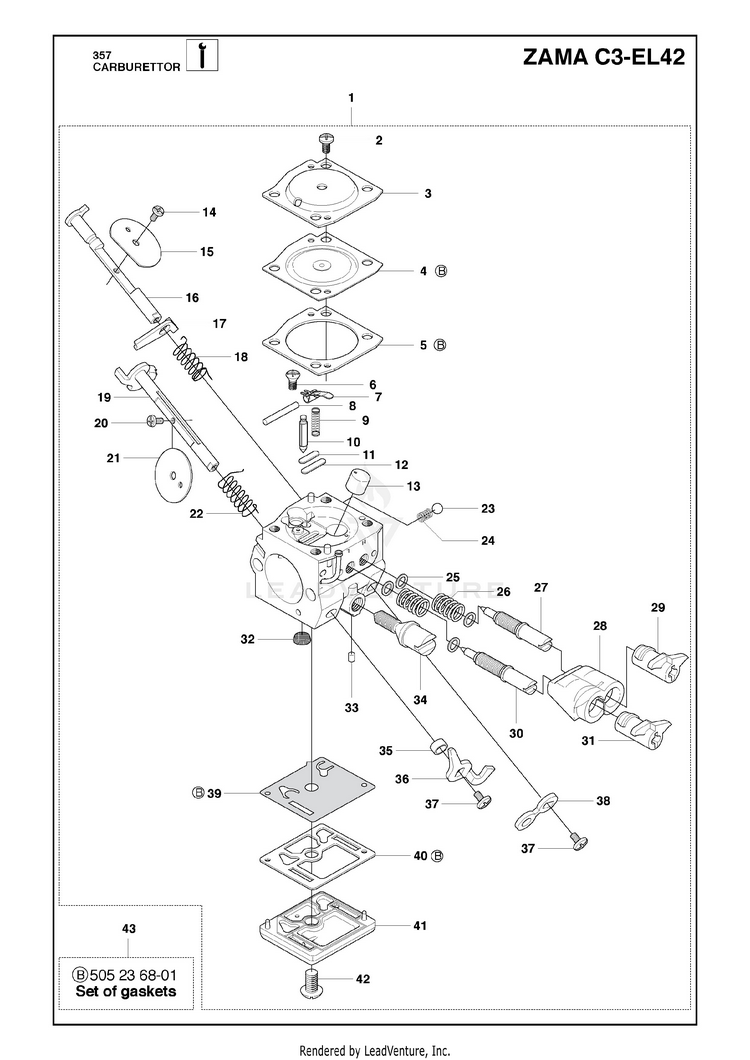

Carburettor

...
...
1
CARBURETOR W/SLEEVE HUS-505203002
...
2
SCREW HUS-503480501
...
3
COVER HUS-537176001
...
4
DIAPHRAGM HUS-537175901
...
5
GASKET HUS-505223901
...
6
SCREW HUS-544082101
...
7
LEVER HUS-537176401
...
8
PIN HUS-537020801
...
9
SPRING HUS-537176301
...
10
VALVE HUS-537176201
...
11
PLUG HUS-537177801
...
12
PLUG HUS-503535601
...
13
NOZZLE ASSY HUS-505236701
...
14
SCREW HUS-503523601
...
15
CHOKE FLAP HUS-537177201
...
16
CHOKE SHAFT HUS-537177101
...
17
THROTTLE LOCK HUS-544056701
...
18
SPRING HUS-537176601
...
19
THROTTLE SHAFT HUS-537175701
...
20
SCREW HUS-503481801
...
21
THROTTLE FLAP HUS-537177001
...
22
SPRING HUS-537176101
...
23
BALL HUS-537012501
...
24
SPRING HUS-537012601
...
25
WASHER HUS-503903101
...
26
SPRING HUS-503994301
...
27
JET HUS-537178501
...
28
SLEEVE HUS-503903401
...
29
LIMITER CAP HUS-503903301
...
30
LOW SPEED NEEDLE HUS-537178601
...
31
LIMITER CAP HUS-503903201
...
32
STRAINER HUS-503535701
...
33
PLUG HUS-503481101
...
34
SCREW HUS-504027301
...
35
BUSHING HUS-503481901
...
36
LEVER HUS-537176901
...
37
SCREW HUS-503479001
...
38
LEVER HUS-537177501
...
39
PUMP DIAPHRAGM HUS-537380201
...
40
GASKET HUS-503616601
...
41
COVER HUS-537176801
...
42
SCREW HUS-503479601
...
43
KIT GASKET B = Set of gaskets HUS-505236801
Schematic Image Zoomed
