Husqvarna 357 (2010-02) Chain Saw

Model: 357 (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

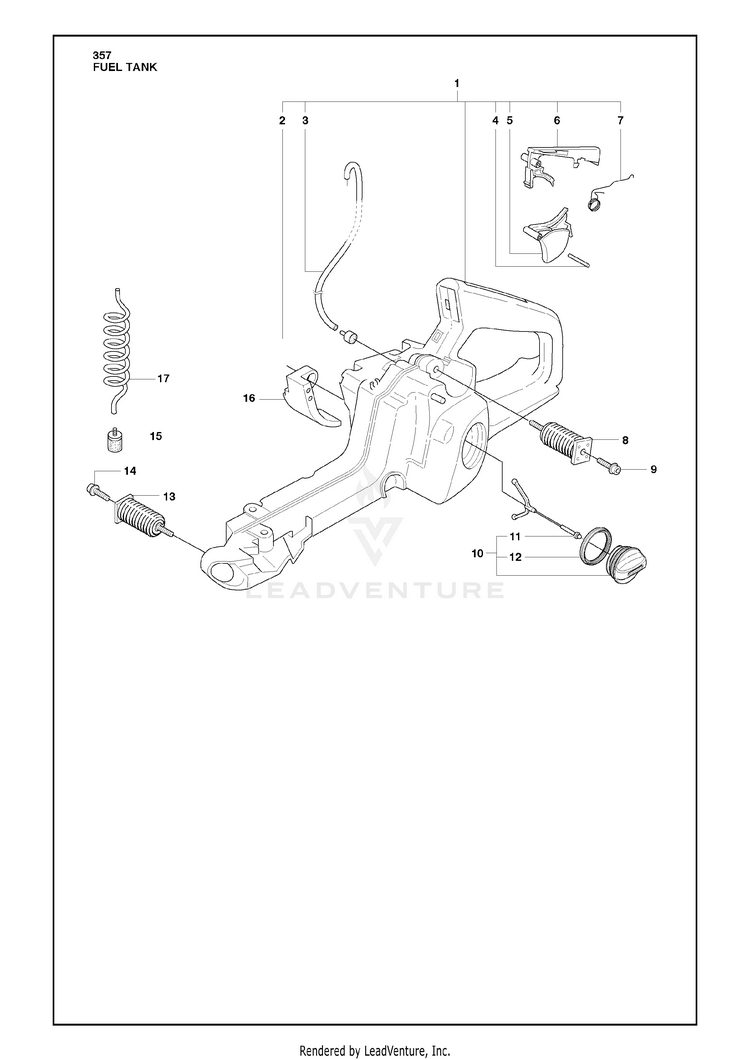

Fuel Tank

...
...
1
FUEL TANK W/ ACCESSORIES HUS-503923001
...
2
FUEL TANK VENT HUS-501152901
...
3
FUEL HOSE STRAIGHT 120 HUS-581756120
...
4
PIN HUS-720182520
...
5
TRIGGER HUS-503854501
...
6
THROTTLE LOCK HUS-503854401
...
7
SPRING HUS-503998601
...
8
VIBRATION ABSORBER HUS-503854101
...
9
SCREW HUS-503218876
...
10
TANK CAP E-tech HUS-537215207
...
10
TANK CAP HUS-537215208
...
11
TANK LOCK HUS-503578901
...
12
SEALING HUS-589241101
...
13
SPRING HUS-503923101
...
14
SCREW HUS-503218876
...
15
KIT FUEL FILTER HUS-591375401
...
16
PROTECTOR HUS-503964301
...
17
KIT HOSE SPIRAL 300 HUS-591375201
