Husqvarna 356 BT BLOWERS

Model: 356 BT

Back To Assemblies

Save Part Not Listed?
product name

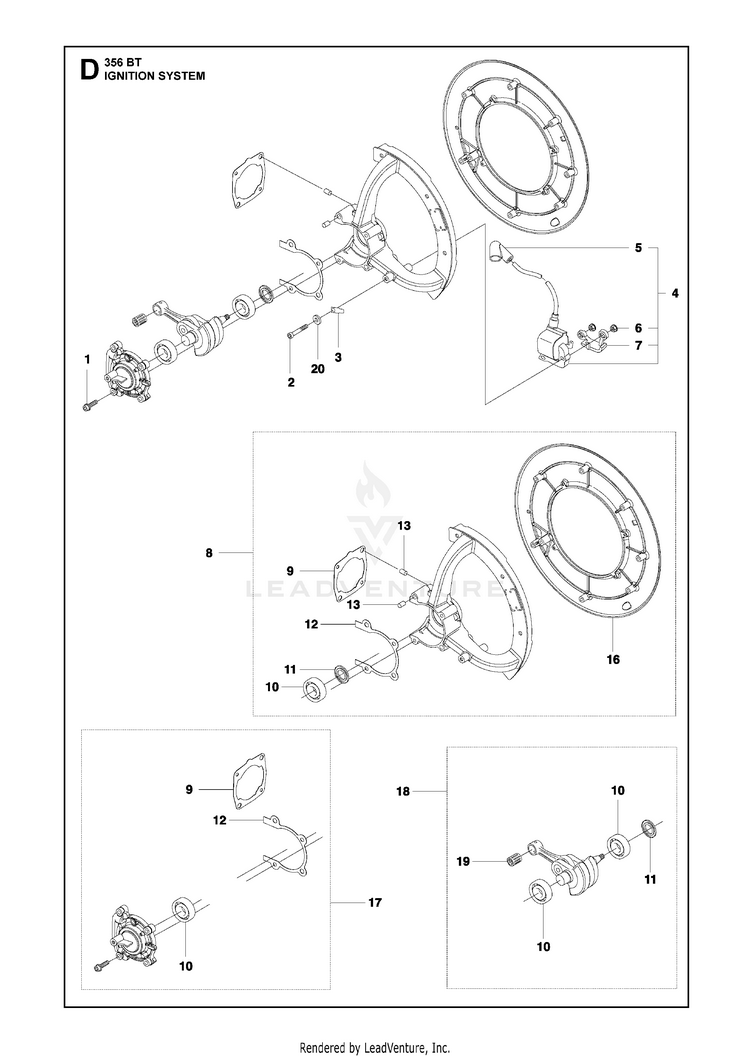

IGNITION SYSTEM

...
...
3
FLAT PIN SN 081370241 - HUS-505131601
...
2
SCREW HUS-503202550
...
8
CRANKCASE KIT HUS-537414702
...
19
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
13
GUIDE BUSHING HUS-593806001
...
11
SEAL RING HUS-505275719
...
4
IGNITION SYSTEM HUS-544019803
...
20
WASHER 4.2X9 HUS-503230001
...
16
PLATE HUS-537057301
...
9
GASKET HUS-537296601
...
12
GASKET HUS-537061101
...
18
CRANKSHAFT HUS-537414601
...
10
BALL BEARING HUS-544068601
...
5
SPARK PLUG CONN. KIT HUS-501485402
...
7
BRACKET HUS-537293701
...
6
NUT HUS-503220102
...
17
COVER HUS-537414901
...
1
SCREW MC6S 5X35 HUS-725533755
