Husqvarna 356 BT BLOWERS

Model: 356 BT

Back To Assemblies

Save Part Not Listed?
product name

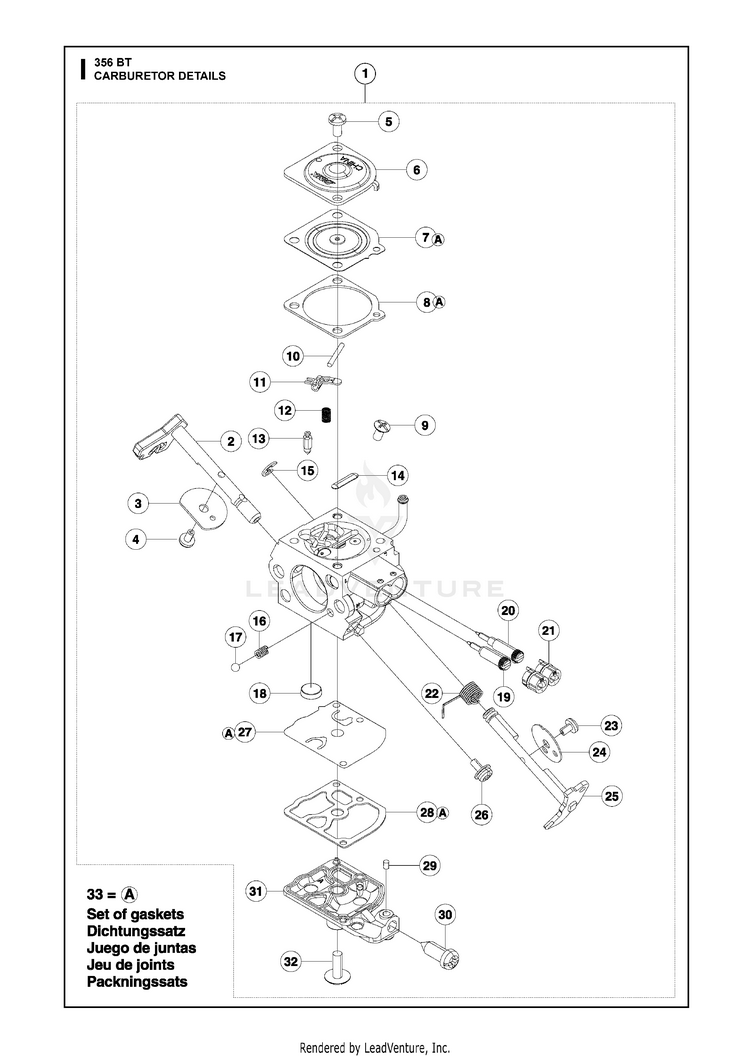

CARBURETOR DETAILS

...
...
27
PUMP DIAPHRAGM HUS-537020001
...
12
SPRING HUS-537273401
...
15
CLIP HUS-537385201
...
28
GASKET HUS-537020101
...
25
SHAFT HUS-537390001
...
26
SCREW * HUS-503755301
...
6
COVER HUS-503974301
...
18
STRAINER HUS-503535701
...
24
THROTTLE FLAP HUS-537390101
...
23
SCREW HUS-503479201
...
14
PLUG HUS-503535601
...
5
SCREW HUS-503480501
...
22
SPRING THROTTLE HUS-537019701
...
2
SHAFT HUS-537390201
...
7
NEEDS DESCRIPTION HUS-504113501
...
33
GASKET SET HUS-537243601
...
20
IDLE SCREW L HUS-537416901
...
3
CHOKE CAP HUS-537370301
...
31
COVER HUS-537020201
...
21
LIMITER CAP KIT HUS-537417001
...
9
SCREW HUS-503480101
...
11
LEVER HUS-503665901
...
16
SPRING HUS-537012601
...
29
PLUG HUS-503481101
...
19
SCREW H HUS-537387501
...
30
SCREW HUS-537020701
...
1
CARBURETOR C1Q-EL52 HUS-579462701
...
4
SCREW HUS-503481801
...
13
INLET NEEDLE HUS-503479701
...
8
GASKET METERING SIDE HUS-503480301
...
32
SCREW HUS-503479601
...
17
BALL HUS-537012501
...
10
PIN HUS-537020801
