Husqvarna 356 BT BLOWERS

Model: 356 BT

Back To Assemblies

Save Part Not Listed?
product name

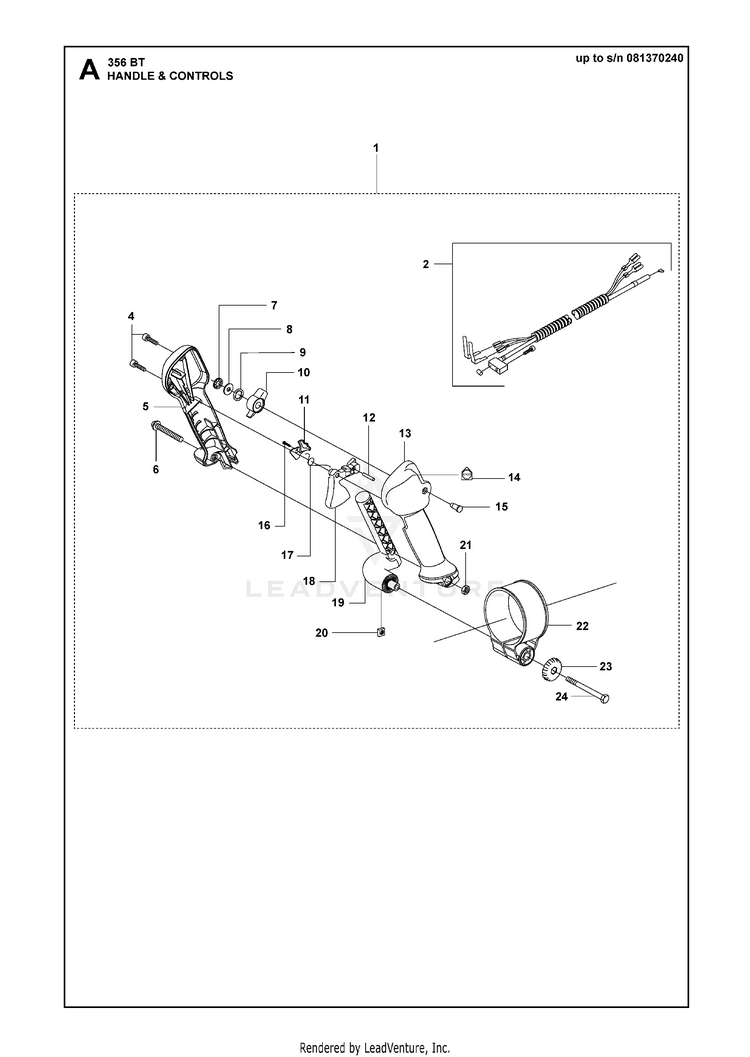

HANDLE & CONTROLS

...
...
19
HOLDER, HANDLE HUS-502245301
...
5
HANDLE HUS-537142501
...
8
WASHER HUS-734114741
...
9
Springs HUS-591176401
...
7
CLIP HUS-735583501
...
12
PIN HUS-720123620
...
20
NUT HUS-503226504
...
10
CONTROL HUS-537141001
...
17
SPRING HUS-537174201
...
13
HANDLE HUS-537142001
...
22
HOLDER HUS-537260301
...
18
THROTTLE CONTROL HUS-506497701
...
21
NUT HUS-503221013
...
16
SCREW HUS-503212906
...
2
WIRING ASSY HUS-505198601
...
24
SCREW HUS-725234451
...
23
KNOB HUS-502204001
...
4
SCREW HUS-503216618
...
15
SHAFT HUS-537141201
...
14
KNOB HUS-537277701
...
11
BRACKET HUS-537216401
...
1
HANDLE ASSY Up to 081370240 HUS-522832101
...
6
SCREW IHSCFM HUS-503200782
