Husqvarna 356 BF BLOWERS

Model: 356 BF

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

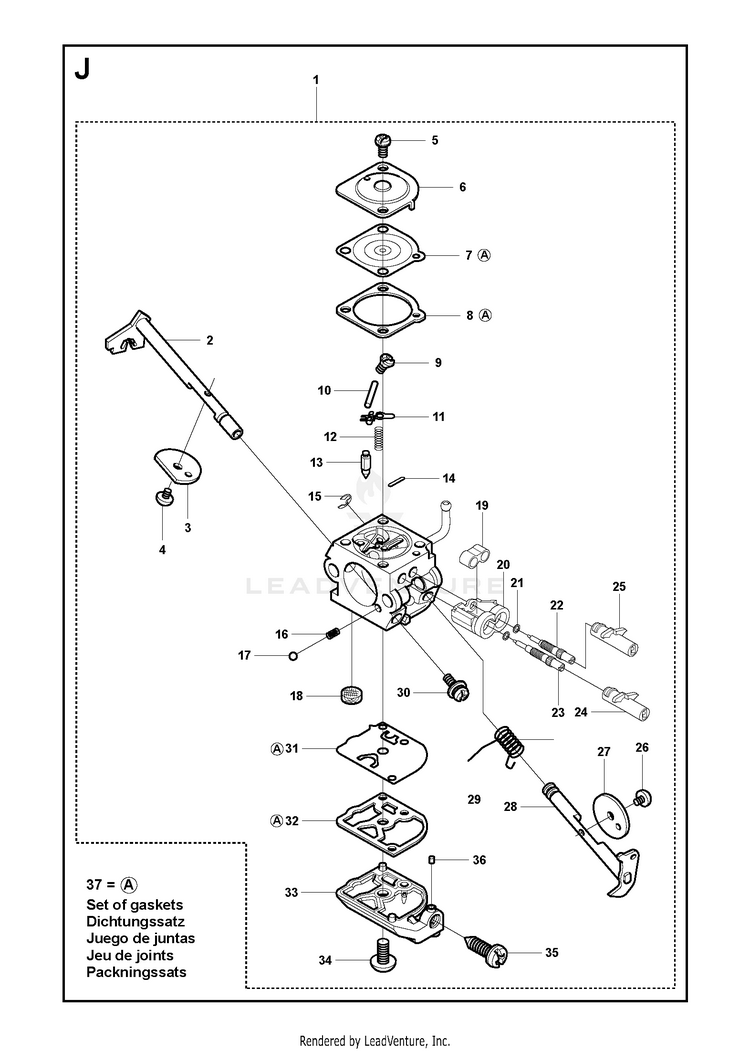

CARBURETOR DETAILS

...
...
11
LEVER HUS-503665901
...
27
THROTTLE FLAP HUS-537390101
...
3
CHOKE CAP HUS-537370301
...
30
SCREW * HUS-503755301
...
25
LIMITER CAP HUS-503903201
...
16
SPRING HUS-537012601
...
8
GASKET METERING SIDE HUS-503480301
...
9
SCREW HUS-503480101
...
21
WASHER HUS-503974001
...
6
COVER HUS-503974301
...
17
BALL HUS-537012501
...
4
SCREW HUS-503481801
...
33
COVER HUS-537020201
...
14
PLUG HUS-503535601
...
15
CLIP HUS-537385201
...
32
GASKET HUS-537020101
...
12
SPRING HUS-537273401
...
1
CARBURETOR HUS-503283119
...
26
SCREW HUS-503479201
...
36
PLUG HUS-503481101
...
22
NEEDLE LOW SPEED H HUS-537275501
...
28
SHAFT HUS-537390001
...
31
PUMP DIAPHRAGM HUS-537020001
...
5
SCREW HUS-503480501
...
24
LIMITER CAP HUS-503903301
...
29
SPRING THROTTLE HUS-537019701
...
23
NEEDLE HIGH SPEED L HUS-537275601
...
20
SLEEVE HUS-503903401
...
34
SCREW HUS-503479601
...
35
SCREW HUS-537020701
...
19
SLEEVE HUS-537274201
...
2
SHAFT HUS-537390201
...
18
STRAINER HUS-503535701
...
13
INLET NEEDLE HUS-503479701
...
7
METERING DIAPHRAGM HUS-503480201
...
10
PIN HUS-537020801
