Husqvarna 353 Chain Saw

Model: 353

Back To Assemblies

Save Part Not Listed?
product name

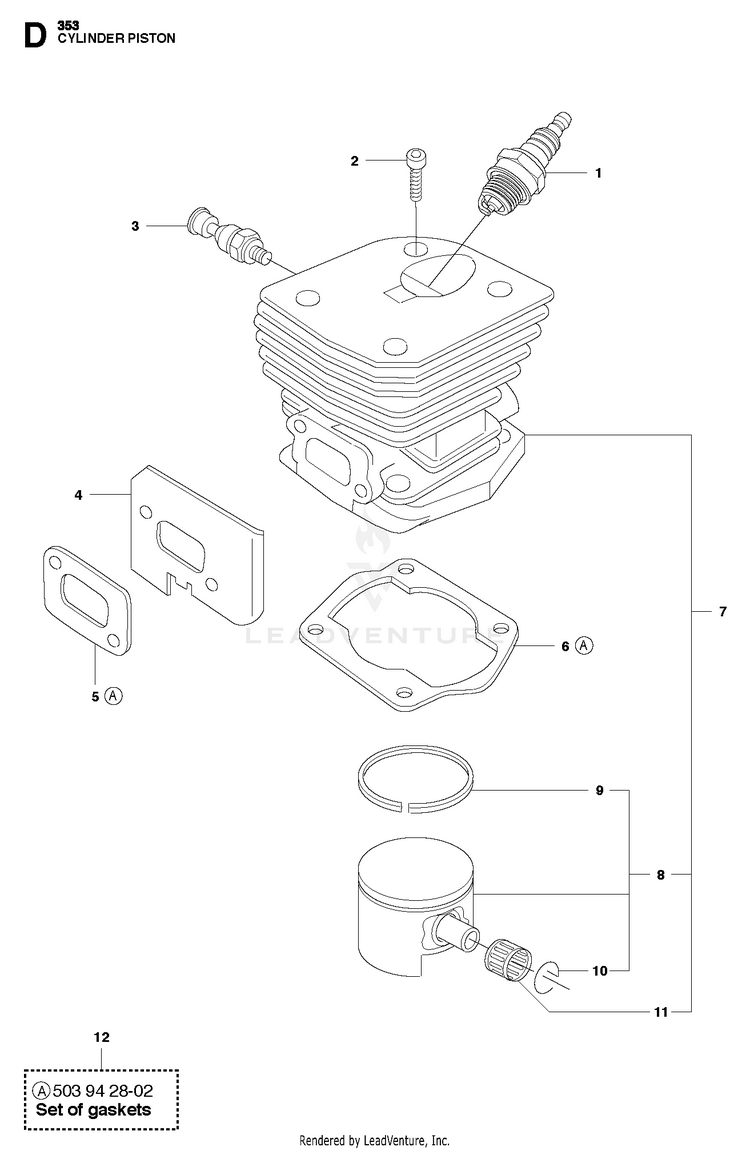

CYLINDER PISTON

...
...
11
SUPPORT BUSHING HUS-501451601
...
9
PISTON RING 353 HUS-544435001
...
8
PISTON 353 HUS-537223604
...
5
GASKET HUS-503862501
...
7
CYLINDER ASSY 353 HUS-537253104
...
10
LOCKING RING HUS-737441000
...
4
GUARD HUS-503971301
...
2
SCREW MC6S 5X25 From s/n 20034200001 - HUS-725533355
...
1
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
6
GASKET HUS-503894401
...
12
GASKET SET A = Set of gaskets HUS-503942802
...
3
DECOMPRESSION VALVE HUS-544200001
