Husqvarna 353 Chain Saw

Model: 353

Back To Assemblies

Save Part Not Listed?
product name

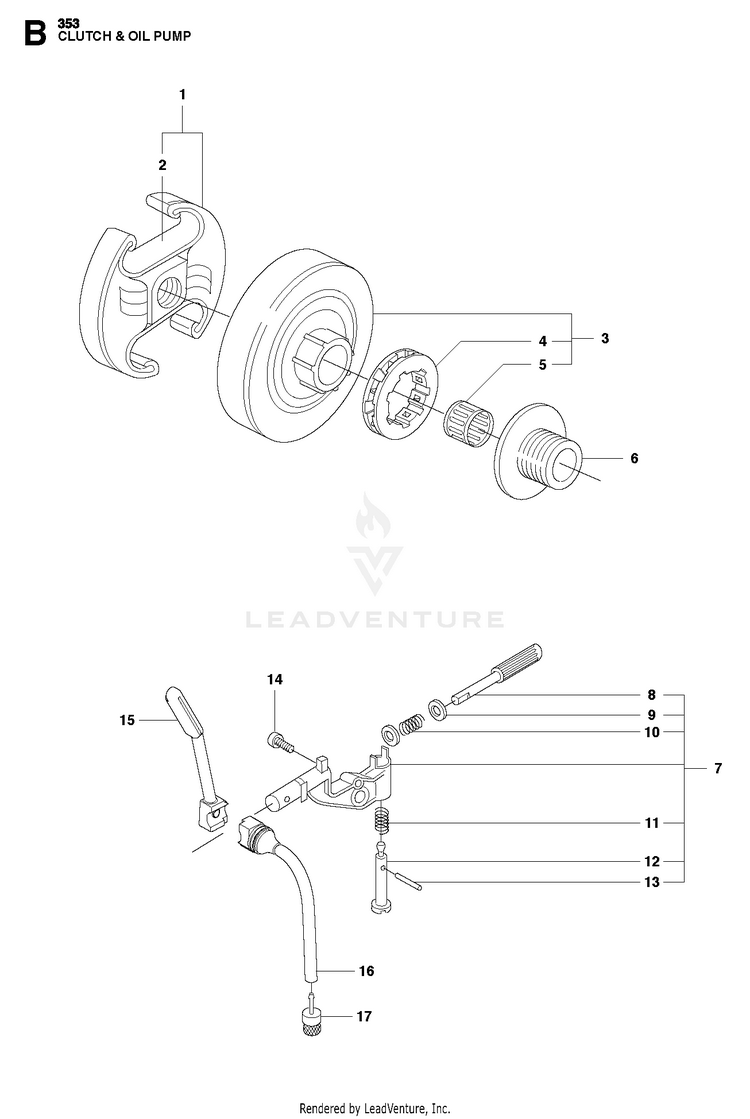

CLUTCH & OIL PUMP

...
...
15
OIL PRESSURE HOSE From s/n 20071300001 - HUS-537413201
...
13
PIN HUS-721116430
...
2
SPRING HUS-537359101
...
9
WASHER HUS-503230060
...
16
HOSE From s/n 20071300001 - HUS-537101102
...
1
CLUTCH HUS-537110503
...
12
ADJUSTER HUS-537027101
...
4
11892 POWER MATE RIM 0.325" - 7T HUS-640200010
...
3
CLUTCH DRUM 0.325" - 7T HUS-503980002
...
16
HOSE - up to s/n 20071299999. HUS-503854701
...
10
SPRING HUS-503891601
...
6
PUMP PINION HUS-503892103
...
11
SPRING HUS-503891501
...
8
PUMP PISTON HUS-537069102
...
5
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
7
OIL PUMP ASSY HUS-544180103
...
14
SCREW HUS-503217412
...
17
OIL PLUMMET HUS-504710003
...
3
CLUTCH DRUM 3/8 3/8" - 7T For Latin America HUS-503980003
...
4
RIM 18720 3/8" 7T 3/8" - 7T For Latin America HUS-640200036
