Husqvarna 353 Chain Saw

Model: 353

Back To Assemblies

Save Part Not Listed?
product name

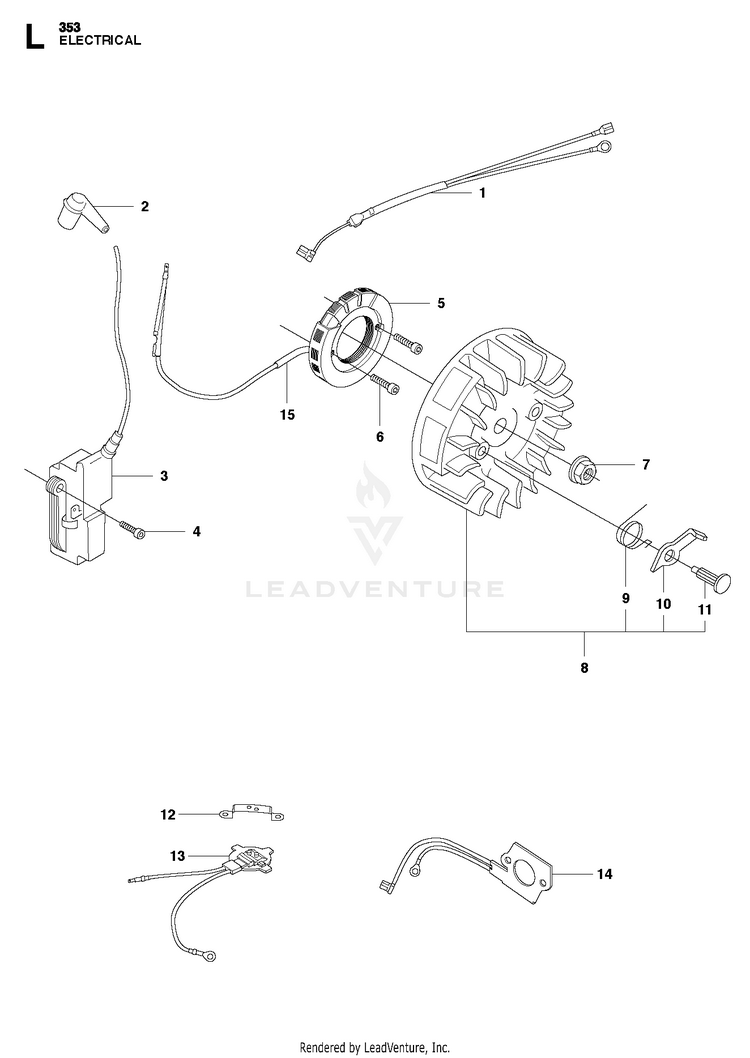

ELECTRICAL

...
...
10
PAWL XPG/G HUS-503895001
...
3
IGNITION MODULE 353/346XP Japan HUS-544047001
...
9
SPRING HUS-529271101
...
8
FLYWHEEL HUS-503824301
...
12
RETAINER XPG/G, Heated carb HUS-537060402
...
4
SCREW HUS-503215525
...
8
FLYWHEEL XPG/G, Heated carb HUS-503824305
...
9
SPRING XPG/G HUS-529271101
...
1
WIRING ASSY XPG/G, Heated carb HUS-503898706
...
10
PAWL XPG/G, Heated carb HUS-503895001
...
3
NEEDS DESCRIPTION 353/346XP Japan, with spark plug cap HUS-544047003
...
6
SCREW HUS-503202516
...
5
GENERATOR STATOR XPG/G, Heated carb HUS-502609601
...
14
HEATING PLATE XPG/G, Heated carb HUS-504043201
...
11
RIVET XPG/G HUS-503790502
...
1
WIRING ASSEMBLY XPG/G HUS-503898704
...
9
SPRING XPG/G, Heated carb HUS-529271101
...
11
RIVET HUS-503790502
...
15
CABLE COVER XPG/G, Heated carb HUS-504043501
...
2
SPARK PLUG CONN. KIT compl HUS-501485402
...
7
NUT W/ WASHER HUS-503220401
...
8
NEEDS DESCRIPTION XPG/G HUS-503824304
...
5
GENERATOR XPG/G HUS-537330201
...
13
THERMOSTAT ASSY XPG/G, Heated carb HUS-501986301
...
11
RIVET XPG/G, Heated carb HUS-503790502
...
10
PAWL HUS-503895001
