product name

Husqvarna 353 Chain Saw

Model: 353

Back To Assemblies

Save Part Not Listed?
product name

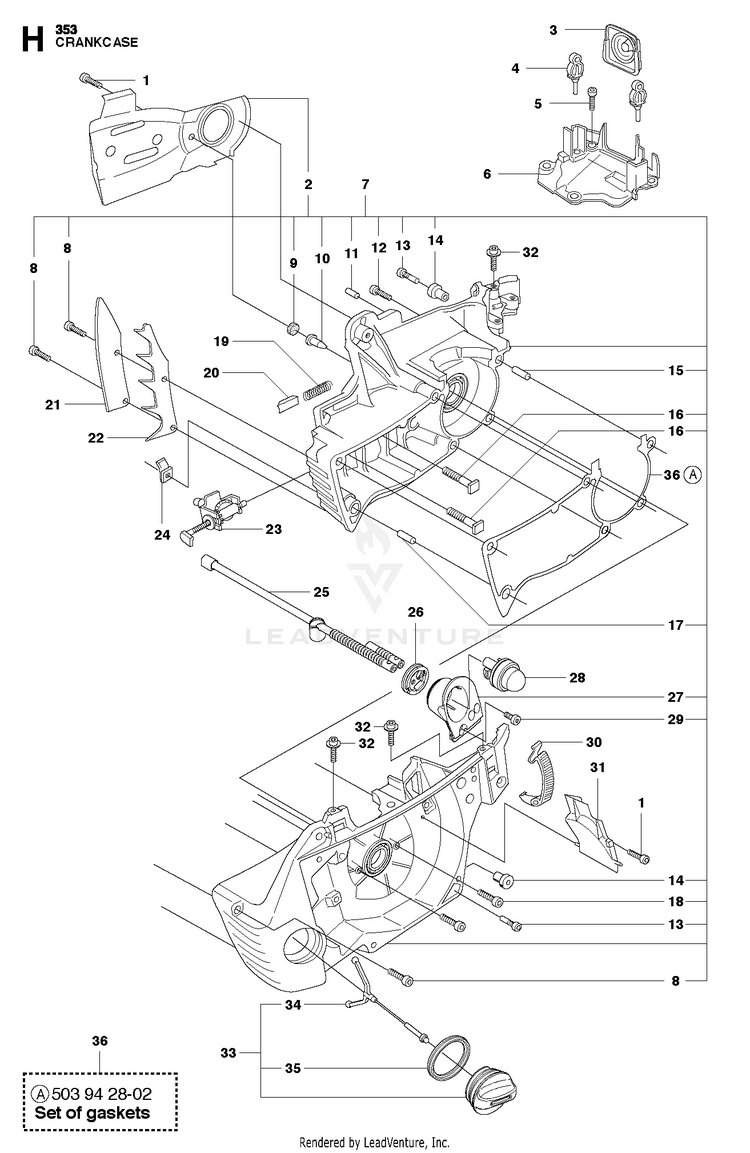

CRANKCASE

...
...
12
SCREW HUS-503200870
...
18
SCREW HUS-503202516
...
19
LOCK SPRING HUS-503436501
...
31
DEFLECTOR HUS-503888601
...
13
SCREW HUS-503215101
...
2
PLATE - up to s/n 20071299999. HUS-503875601
...
11
PIN HUS-721120730
...
35
OILCAP GASKET HUS-501626801
...
8
SCREW HUS-503200776
...
24
CHAIN CATCH HUS-596970401
...
10
VALVE-CHECK (DUCKBILL) From s/n 20072500002 - HUS-530026119
...
2
CHAIN GUIDE PLATE From s/n 20071300001 - HUS-537405601
...
14
MOVEMENT LIMITER HUS-503869201
...
32
SCREW HUS-503213901
...
36
GASKET SET A = Set of gaskets HUS-503942802
...
9
SINTERED BRONZE FILTER HUS-537403502
...
15
Sleeve HUS-503905601
...
5
SCREW HUS-503217512
...
22
SPIKE HUS-503905901
...
29
SCREW IHSCT HUS-544449701
...
30
BUCKLE ORANGE orange, 353 HUS-503894701
...
20
CATCH HUS-503892401
...
28
AIR PURGE BUBBLE HUS-503936601
...
10
VALVE - up to s/n 20072500001. HUS-537040301
...
3
BELLOWS HUS-537146501
...
4
DAMPNER HUS-597909701
...
1
SCREW HUS-503217412
...
33
OIL TANK CAP GREY HUS-537281502
...
21
BUMPER HUS-503930401
...
34
TANK LOCK HUS-503578901
...
17
Sleeve HUS-503905601
...
23
CHAIN TENSIONER HUS-537071201
...
25
HOSE HUS-544331002
...
16
BOLT HUS-503875401
...
6
CARBURETOR AREA BASE HUS-544360701
...
7
CRANKCASE ASSY From s/n 20030500501 - HUS-537171905
...
27
BRACKET HUS-579347201
...
26
LINING HUS-504010901
