Husqvarna 353 (2009-02) Chain Saw

Model: 353 (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

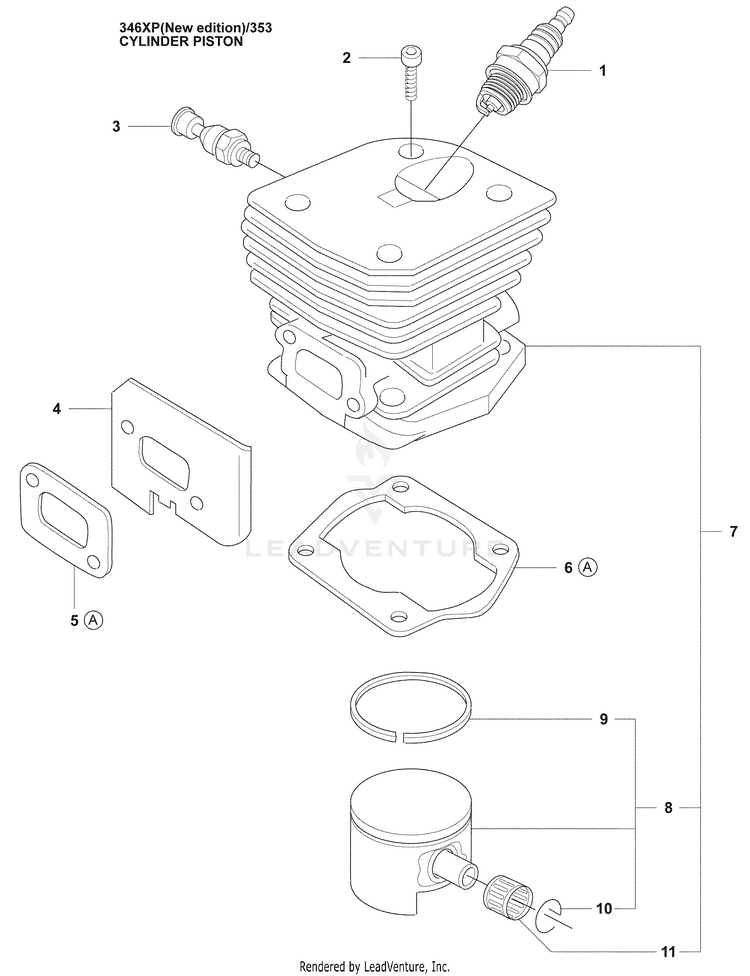

Cylinder Kit (NE)

...
...
1
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
2
SCREW MC6S 5X25 HUS-725533355
...
3
DECOMPRESSION VALVE HUS-544200001
...
4
GUARD HUS-503971301
...
5
GASKET HUS-503862501
...
6
GASKET HUS-503894401
...
7
CYLINDER ASSY 353 HUS-537253104
...
7
CYLINDER 346XP 50 cc HUS-544142907
...
7
CYLINDER 346XP decomp 50 cc HUS-544142908
...
8
PISTON 353 HUS-537223604
...
8
PISTON ASSY 346XP 50 cc, 346XP decomp 50 cc HUS-525470102
...
9
PISTON RING 353 HUS-544435001
...
9
PISTON RING 346XP 50 cc, 346XP decomp 50 cc HUS-544807601
...
10
LOCKING RING HUS-737441000
...
11
SUPPORT BUSHING HUS-501451601
...
12
GASKET SET A = Set of gaskets HUS-503942802
