Husqvarna 350 Rotary 20" (954014314) (2009-10) Walk Mower

Model: 350 Rotary 20" (954014314) (2009-10)

Save Part Not Listed?
product name

Repair Parts

...
...
1
CONTROL BAR/BLACK HUS-532850735
...
2
GUIDE HUS-532103672
...
3
HANDLE HUS-532125174
...
4
HANDLE.LOWER.BLACK HUS-532157081
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
NUT WING PM HUS-532128638
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
8
SCREW.1/4-20.CROSS.RECESS. HUS-874250434
...
9
WASHER PM HUS-532085723
...
10
THROTTLE CONTROL HUS-532851461
...
11
CABLE,ENG ZONE CT HUS-532851669
...
12
SCREW HUS-817021008
...
13
BRACKET.UPSTOP HUS-532850733
...
14
Thread Rolling Screw HUS-53210788
...
15
Housing Bracket HUS-532125231
...
16
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
17
WIRE TIE HUS-532007192
...
18
HAIRPIN COTTER HUS-532051793
...
19
GUARD-DISCHARGE HUS-532851750
...
20
WASHER HUS-819091214
...
21
HOUSING HUS-532800749
...
22
ASSY-HANDLE BRACKET (RT) (Right) HUS-532125164
...
23
ASSY-HANDLE BRACKET (LEFT (Left) HUS-532125163
...
24
STEEL WASHER HUS-532059289
...
25
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
26
WASHER.FLAT.1/2 HUS-532088348
...
27
Nuts HUS-596322601
...
28
BOLT,HEX HEAD HUS-532057968
...
29
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
31
GSPH HUS-596134901
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
33
KNOB HUS-532087877
...
34
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
35
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
36
KIT.ARM.ASM.AXLE.W/NUT.5 POS HUS-532187930
...
37
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
38
Washers HUS-596040101
...
39
RETAINER CLIP PM HUS-532085179
...
40
WASHER.ENGINE.BZP (Engine) These parts must be purchased through an authorized Briggs & Stratton dealer HUS-532125078
...
41
ADAPTOR.BLADE.7/8 HUS-581547901
...
42
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
43
WASHER,HARDEN HUS-532851074
...
44
Washers HUS-596238701
...
45
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
46
BOLT 3/8-16X1-1/8 HUS-532150406
...
47
SKIRT.REAR HUS-532008259
...
48
SCREW HUS-817021008
...
49
DECAL.CUTFINGER.CE.02 HUS-581579101
...
xx
Operator's Manual (Scandinavian) HUS-532128288
...
xx
Operator's Manual (European) HUS-532128289
...
xx
Norlett Decal (Housing) HUS-532801107
...
xx
HSG DECAL (Housing) HUS-532800585

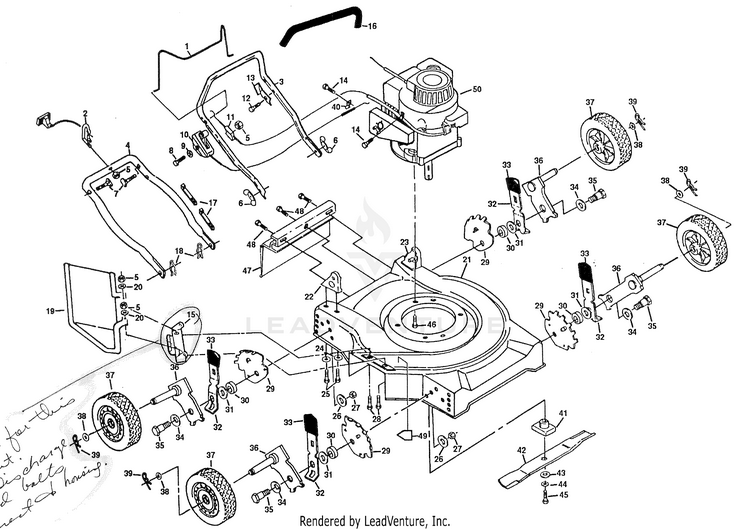

Schematic Image Zoomed
