Husqvarna 350 BT BLOWERS

Model: 350 BT

Back To Assemblies

Save Part Not Listed?
product name

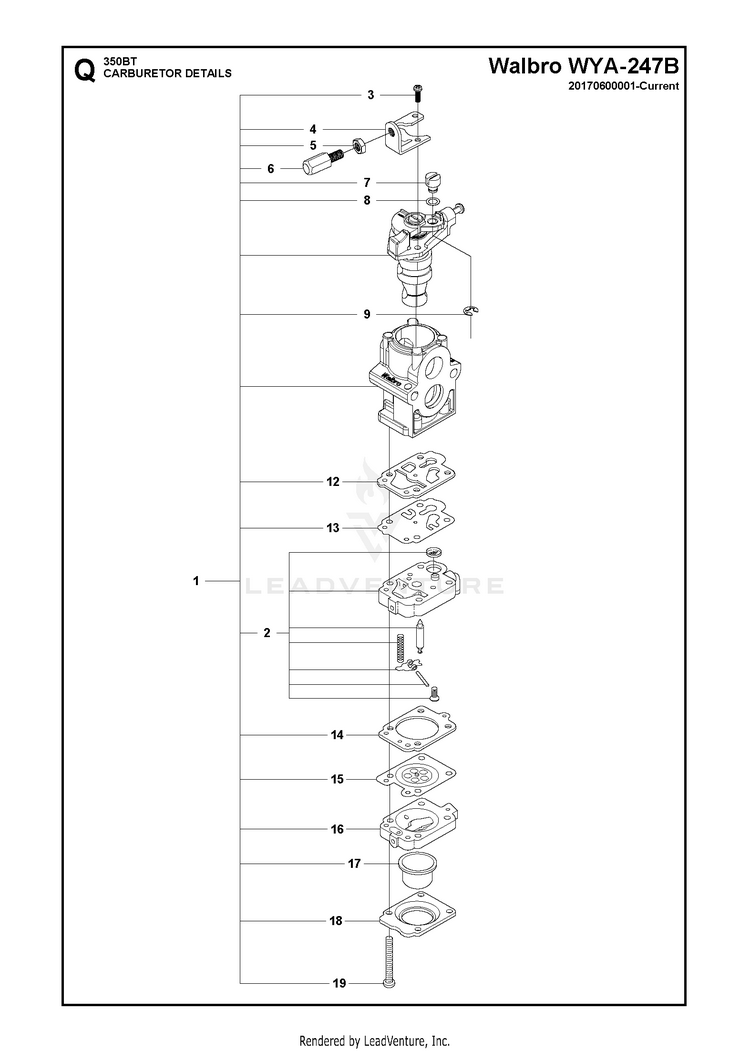

CARBURETOR DETAILS 2

...
...
6
SCREW (RPLS 191881170) HUS-521756001
...
13
DIAPHRAGM HUS-506689801
...
3
SCREW HUS-505307901
...
16
BODY HUS-506740901
...
1
CARBURETTOR HUS-581156601
...
12
GASKET HUS-506745101
...
8
WASHER HUS-506746101
...
17
PUMP HUS-505306701
...
15
DIAPHRAGM HUS-505306801
...
18
1OVER HUS-506741001
...
19
SCREW HUS-506741101
...
14
GASKET HUS-506740801
...
7
SWIVEL HUS-506741201
...
5
NUT HUS-510487401
...
2
BODY-A-PUMP HUS-544363501
...
4
BRACKET HUS-506746001
...
9
RING HUS-516523601
