Husqvarna 350 BF BLOWERS

Model: 350 BF

Back To Assemblies

Save Part Not Listed?
product name

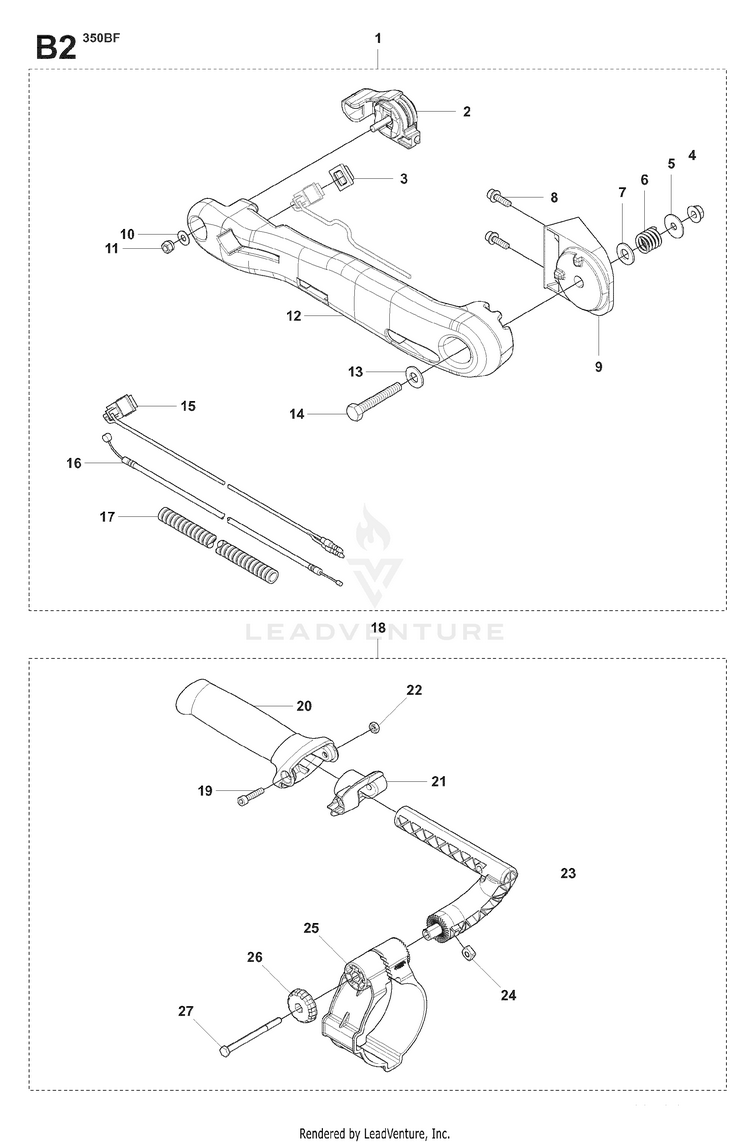

HANDLE & CONTROLS

...
...
4
NUT 8488646000 HUS-521519601
...
13
WASHER HUS-514336701
...
21
BRACKET HUS-537172901
...
23
HOLDER, HANDLE HUS-502245301
...
3
CAP SWITCH HUS-513351901
...
22
NUT HUS-731231401
...
14
BOLT HUS-514336201
...
19
SCREW HUS-575725401
...
12
ARM HUS-512648001
...
17
TUBE HUS-544277601
...
26
KNOB HUS-502204001
...
15
KILL SWITCH HUS-504554601
...
2
LEVER HUS-512647801
...
8
SCREW HUS-544270801
...
25
HOLDER TH HUS-544275902
...
20
HANDLE HUS-537172801
...
6
SPRING HUS-514336301
...
27
SCREW HUS-725234451
...
7
WASHER HUS-514336701
...
1
HANDLE ASSY HUS-502842901
...
9
BRACKET HUS-512648101
...
24
NUT HUS-503226504
...
18
GRIP ASSY HUS-504554701
...
5
WASHER Z349525440 HUS-514336501
...
10
RP_WASHER HUS-544276501
...
16
CABLE COMP HUS-544277501
...
11
NUT HUS-514183901
