Husqvarna 350 BF BLOWERS

Model: 350 BF

Back To Assemblies

Save Part Not Listed?
product name

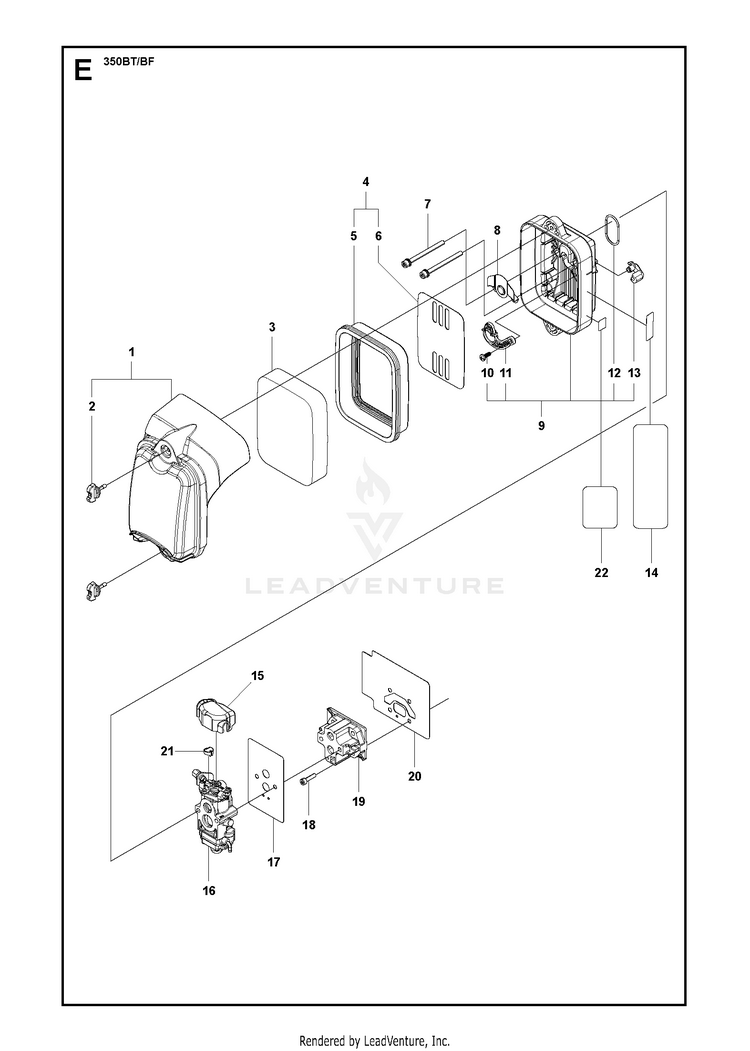

CARBURETOR & AIR FILTER

...
...
14
LABEL,CHOKE HUS-521740201
...
7
SCREW HUS-502844601
...
15
COVER HUS-506744201
...
1
COVER HUS-502844201
...
6
RP_SCREEN HUS-521741401
...
22
NEEDS DESCRIPTION HUS-587115401
...
3
AIR FILTER HUS-502844401
...
19
INSULATION HUS-502845401
...
20
GASKET,INSULATOR HUS-502845501
...
13
LEVER HUS-521740501
...
4
GASKET HUS-502844501
...
18
BOLT HUS-521516501
...
8
PLATE HUS-502844701
...
9
AIR FILTER HOLDER ASSY HUS-502844902
...
21
CAP HUS-513352401
...
16
CARBURETTOR HUS-581156601
...
12
O-RING HUS-512260001
...
5
PACKING HUS-512260301
...
10
SCREW HUS-581736201
...
17
GASKET HUS-502845301
...
11
PLATE HUS-512259601
...
2
KNOB HUS-502844301
