Husqvarna 350 (2007-01) Chain Saw

Model: 350 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

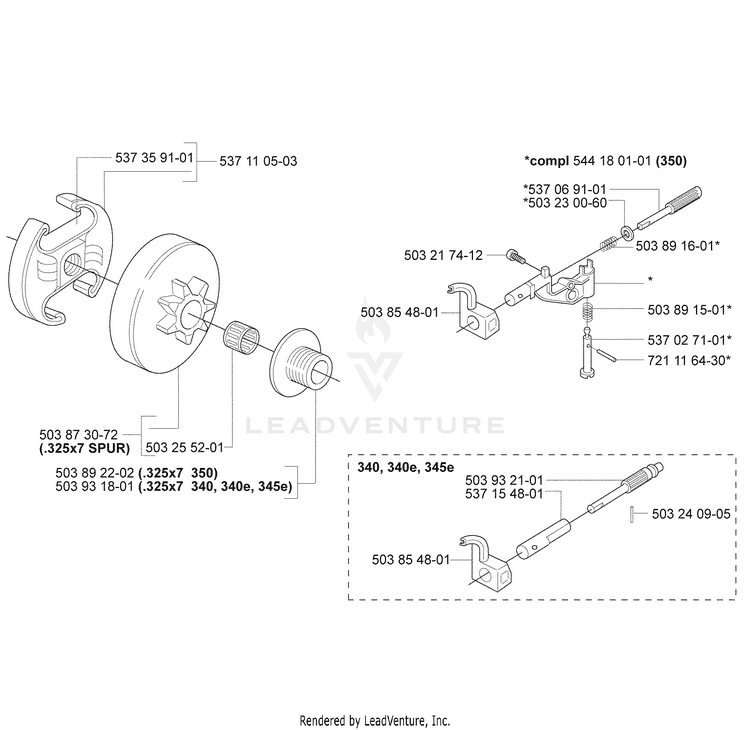

Clutch / Drum and Oil Pump

...
...
537069101
PUMP PISTON HUS-537069102
...
503230060
WASHER HUS-503230060
...
503217412
SCREW HUS-503217412
...
503891601
SPRING HUS-503891601
...
721116430
PIN HUS-721116430
...
537027101
ADJUSTER HUS-537027101
...
503891501
SPRING HUS-503891501
...
537359101
SPRING HUS-537359101
...
537110503
CLUTCH HUS-537110503
...
503892202
PINION HUS-503892202
...
503931801
GEAR WHEEL OIL PUMP HUS-503931801
...
503255201
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
503873072
CLUTCH DRUM HUS-578097901
...
503240905
PIN HUS-503240905
...
503932101
PISTON PUMP HUS-540057901
...
537154801
PUMP CYLINDER HUS-537154801
...
503854801
SEAL HUS-503854801
...
503854801
SEAL HUS-503854801
...
544180101
OIL PUMP ASSY HUS-544180103
