Husqvarna 346 XP TRIOBRAKE Chain Saw

Model: 346 XP TRIOBRAKE

Save Part Not Listed?
product name

CHAIN BRAKE & CLUTCH COVER

...
...
5
SPRING HUS-503465901
...
16
NUT M8 FLANGE HUS-503220001
...
9
SLEEVE HUS-503855201
...
4
JOINT HUS-503890802
...
12
SCREW HUS-503217010
...
7
BRAKE BAND HUS-537043002
...
11
COVER HUS-537058001
...
2
PIN HUS-503892901
...
1
CHAIN BRAKE KPL HUS-537107805
...
14
PIN HUS-503751802
...
15
PLATE HUS-503856601
...
10
ARM HUS-537057901
...
6
E-RING 4 HUS-735310820
...
3
SCREW HUS-503217010
...
8
DECAL HUS-537370401
...
13
PROTECTOR HUS-537089001

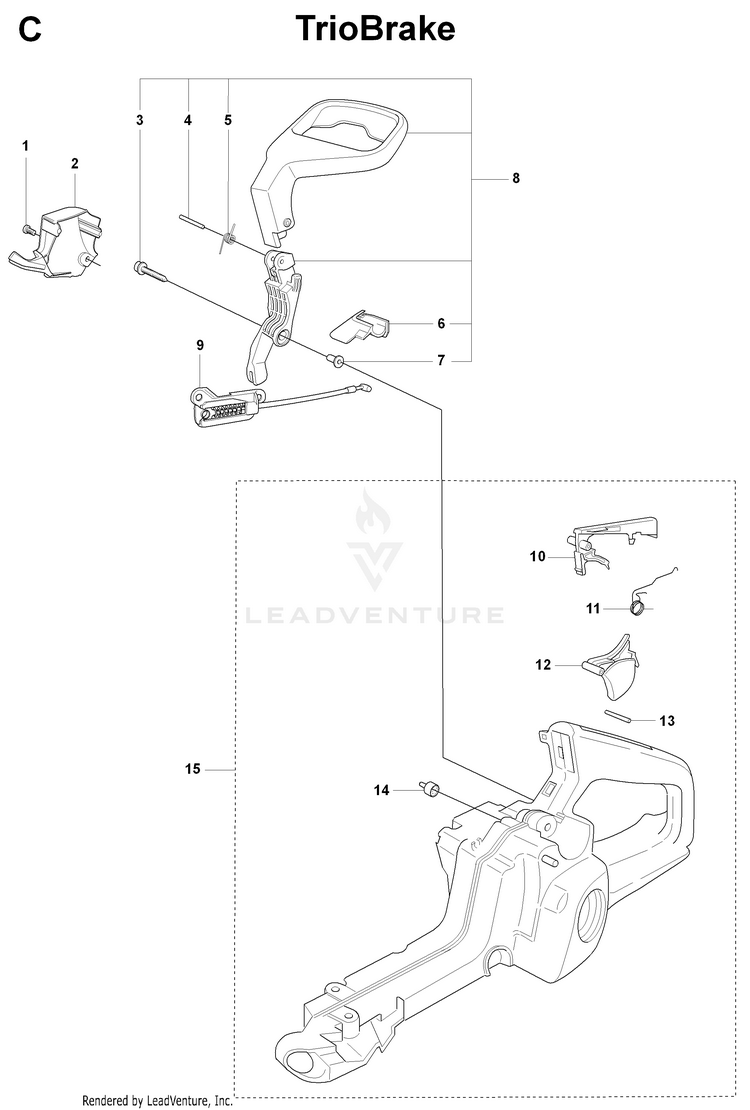

FUEL TANK & HANDLE

...
...
15
TANK UNIT HUS-537099608
...
1
SCREW HUS-503217010
...
5
SPRING HUS-537059201
...
14
FUEL TANK VENT HUS-501152901
...
7
SLEEVE HUS-537265801
...
8
LOOP HUS-537165002
...
9
WIRE ASSY HUS-537058103
...
11
SPRING HUS-503998601
...
10
THROTTLE LOCK HUS-503854401
...
2
COVER HUS-537058801
...
6
BELLOWS HUS-537130101
...
3
SCREW HUS-503217535
...
12
PIN HUS-720182520
...
4
GROOVED PIN HUS-721121330
...
13
TRIGGER HUS-503854501
