Husqvarna 346 XP (20032200001-20041000000) Chain Saw

Model: 346 XP (20032200001-20041000000)

Back To Assemblies

Save Part Not Listed?
product name

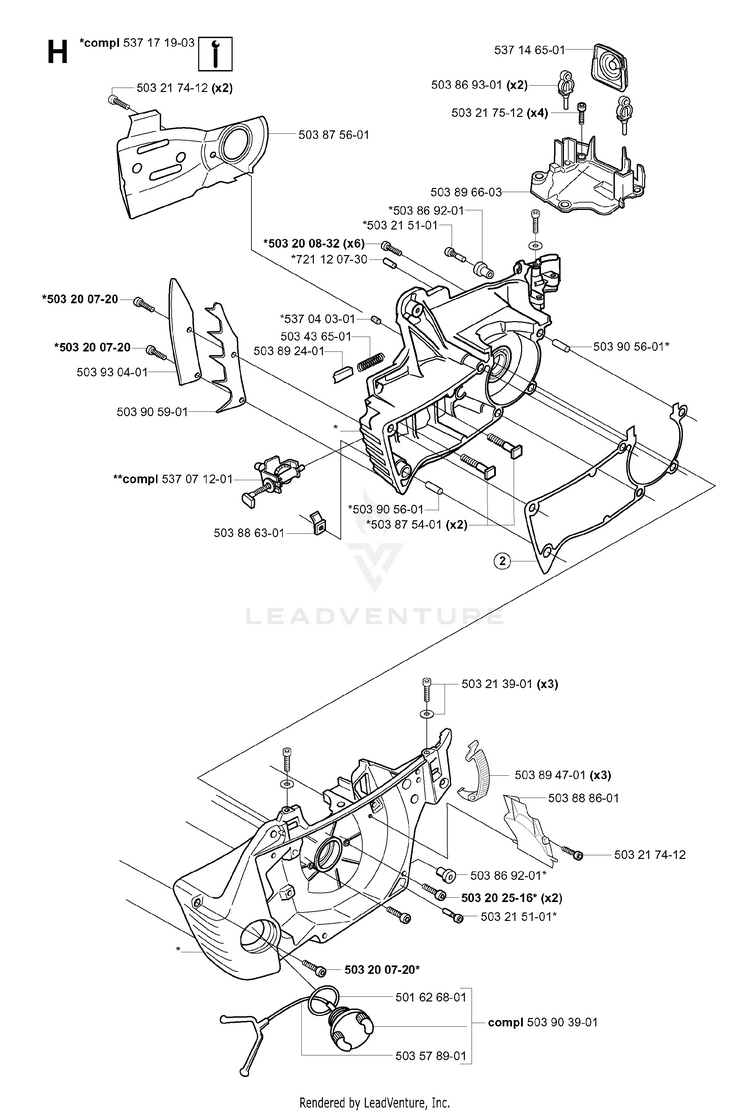

CRANKCASE

...
...
503 21 51-01
SCREW HUS-503215101
...
503 90 39-01
OIL TANK CAP GREY HUS-537281502
...
503 21 74-12
SCREW HUS-503217412
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 21 39-01
SCREW HUS-503213901
...
503 88 63-01
CHAIN CATCHER HUS-503886301
...
537 14 65-01
BELLOWS HUS-537146501
...
503 89 47-01
BUCKLE ORANGE HUS-503894701
...
503 20 07-20
SCREW HUS-503200220
...
503 86 93-01
DAMPNER HUS-597909701
...
503 20 08-32
SCREW HUS-503200832
...
503 43 65-01
LOCK SPRING HUS-503436501
...
503 90 56-01
Sleeve HUS-503905601
...
503 21 75-12
SCREW HUS-503217512
...
503 89 24-01
CATCH HUS-503892401
...
503 21 74-12
SCREW HUS-503217412
...
503 20 25-16
SCREW HUS-503202516
...
503 93 04-01
BUMPER HUS-503930401
...
721 12 07-30
PIN HUS-721120730
...
537 17 19-03
CRANKCASE ASSY HUS-537171905
...
503 86 92-01
MOVEMENT LIMITER HUS-503869201
...
503 90 59-01
SPIKE HUS-503905901
...
503 87 54-01
BOLT HUS-503875401
...
537 07 12-01
CHAIN TENSIONER HUS-537071201
...
503 87 56-01
PLATE HUS-503875601
...
501 62 68-01
OILCAP GASKET HUS-501626801
...
503 88 86-01
DEFLECTOR HUS-503888601
...
503 89 66-03
BASE HUS-503896603
...
537 04 03-01
VALVE HUS-537040301
