Husqvarna 346 XP (20032200001-20041000000) Chain Saw

Model: 346 XP (20032200001-20041000000)

Back To Assemblies

Save Part Not Listed?
product name

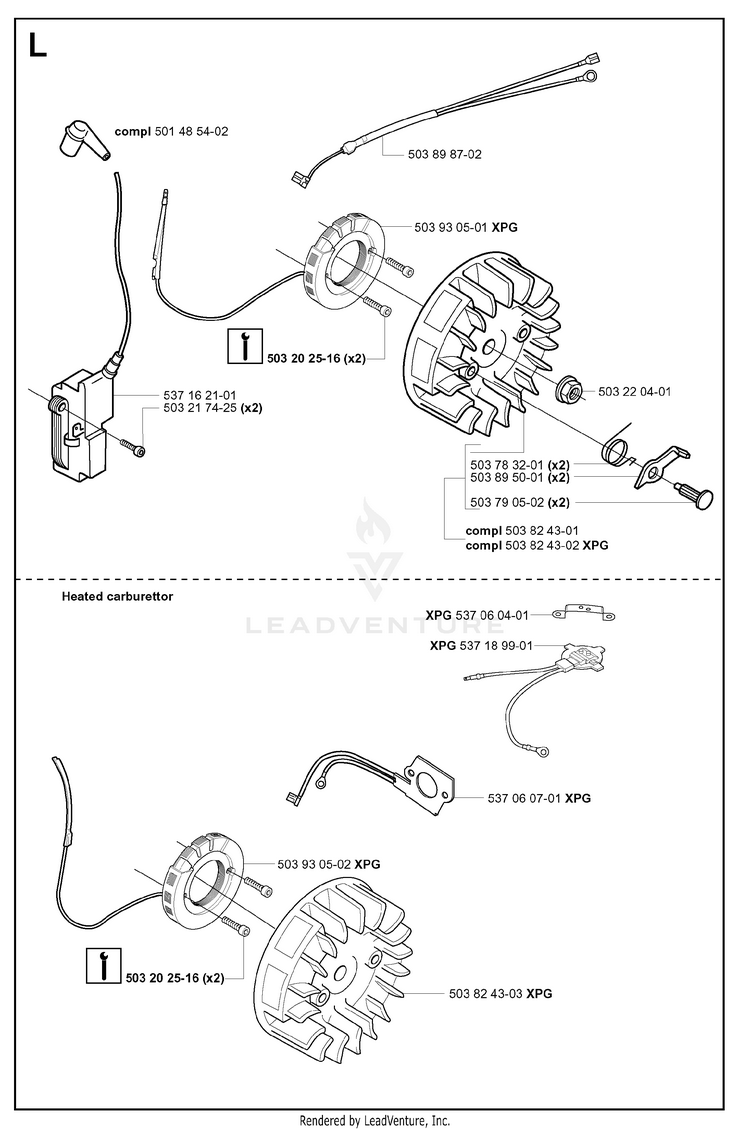

IGNITION SYSTEM

...
...
537 06 07-01
ELEMENT HUS-537060701
...
503 89 87-02
CABLE ASSY HUS-503898702
...
503 82 43-02
FLYWHEEL (G) XPG HUS-503824302
...
503 82 43-03
FLYWHEEL HUS-503824305
...
503 21 74-25
SCREW HUS-503215525
...
503 78 32-01
SPRING HUS-529271101
...
503 82 43-01
FLYWHEEL HUS-503824301
...
537 16 21-01
IGNITION MODULE HUS-544047001
...
503 20 25-16
SCREW HUS-503202516
...
501 48 54-02
SPARK PLUG CONN. KIT HUS-501485402
...
537 06 04-01
BRACKET HUS-537060401
...
503 89 50-01
PAWL HUS-503895001
...
537 18 99-01
THERMOSTAT HUS-537189901
...
503 93 05-02
GENERATOR HUS-537330202
...
503 93 05-01
GENERATOR XPG HUS-537330201
...
503 79 05-02
RIVET HUS-503790502
...
503 22 04-01
NUT W/ WASHER HUS-503220401
Schematic Image Zoomed
