Husqvarna 346 XP (20032200001-20041000000) Chain Saw

Model: 346 XP (20032200001-20041000000)

Back To Assemblies

Save Part Not Listed?
product name

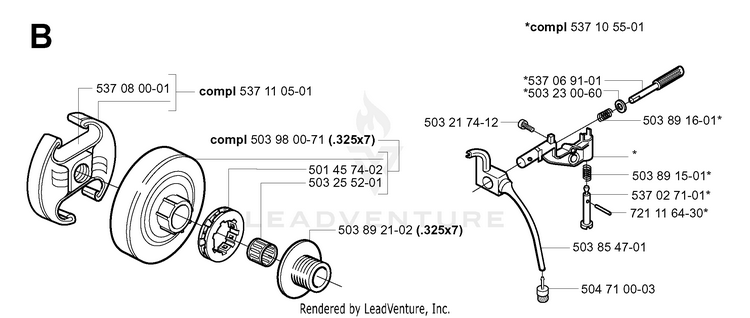

CLUTCH & OIL PUMP

...
...
503 85 47-01
HOSE HUS-503854701
...
503 25 52-01
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
503 89 21-02
PUMP PINION .325X7 HUS-503892103
...
537 08 00-01
SPRING HUS-537359101
...
537 11 05-01
CLUTCH HUS-537110503
...
503 89 16-01
SPRING HUS-503891601
...
537 10 55-01
OIL PUMP ASSY HUS-544180103
...
721 11 64-30
PIN HUS-721116430
...
503 89 15-01
SPRING HUS-503891501
...
503 21 74-12
SCREW HUS-503217412
...
504 71 00-03
OIL PLUMMET HUS-504710003
...
537 02 71-01
ADJUSTER HUS-537027101
...
537 06 91-01
PUMP PISTON HUS-537069102
...
503 23 00-60
WASHER HUS-503230060
...
501 45 74-02
11892 POWER MATE RIM HUS-640200010
...
503 98 00-71
CLUTCH DRUM .325X7 HUS-503980002
