Husqvarna 346 XP (20032200001-20041000000) Chain Saw

Model: 346 XP (20032200001-20041000000)

Back To Assemblies

Save Part Not Listed?
product name

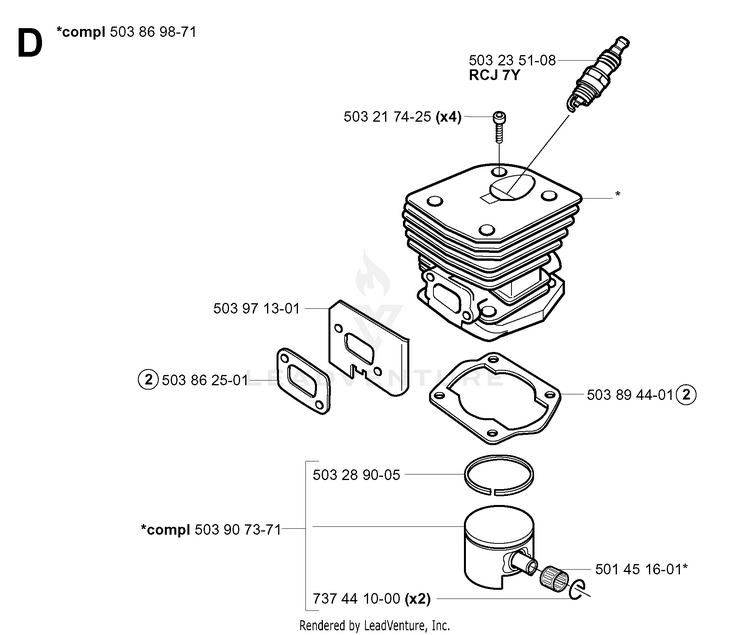

CYLINDER PISTON

...
...
503 23 51-08
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 7Y HUS-503235111
...
503 97 13-01
GUARD HUS-503971301
...
503 89 44-01
GASKET HUS-503894401
...
503 86 25-01
GASKET HUS-503862501
...
503 86 98-71
CYLINDER HUS-503869871
...
503 28 90-05
PISTON RING HUS-503289005
...
501 45 16-01
SUPPORT BUSHING HUS-501451601
...
503 21 74-25
SCREW HUS-503215525
...
737 44 10-00
LOCKING RING HUS-737441000
...
503 90 73-71
PISTON ASSY HUS-503907371
