Husqvarna 346 XP (20032200001-20041000000) Chain Saw

Model: 346 XP (20032200001-20041000000)

Back To Assemblies

Save Part Not Listed?
product name

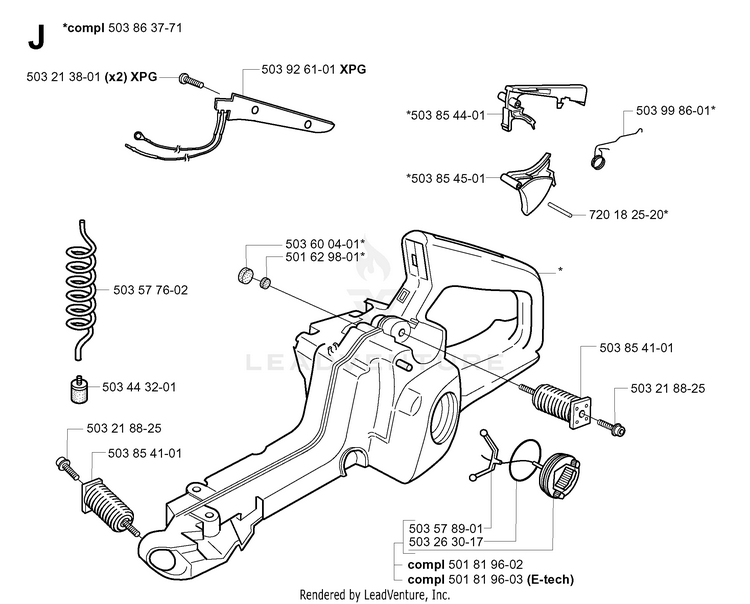

FUEL TANK

...
...
501 81 96-03
TANK CAP E-TECH HUS-537215208
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 85 41-01
VIBRATION ABSORBER HUS-503854101
...
503 99 86-01
SPRING HUS-503998601
...
503 57 76-02
KIT HOSE SPIRAL 300 HUS-591375201
...
501 62 98-01
VALVE PLUG HUS-501629801
...
501 81 96-02
TANK CAP HUS-537215207
...
503 60 04-01
FILTER PLUG HUS-503600401
...
503 26 30-17
O-RING HUS-503263017
...
503 86 37-71
TANK UNIT HUS-503863703
...
503 85 45-01
TRIGGER HUS-503854501
...
503 21 88-25
SCREW HUS-503218876
...
503 92 61-01
Plate (g) (XPG) XPG HUS-503926101
...
503 44 32-01
KIT FUEL FILTER HUS-591375401
...
720 18 25-20
PIN HUS-720182520
...
503 85 44-01
THROTTLE LOCK HUS-503854401
...
503 21 38-01
SCREW XPG HUS-503213801
