product name

Husqvarna 345 e (2005-05) Chain Saw

Model: 345 e (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

e-Start

...
...
537426601
SCREW HUS-537426601
...
537422901
STARTER DEVICE HUS-537422901
...
544016702
DECAL, 345E HUS-544016702
...
544016701
DECAL,340 HUS-544016701
...
537423401
SPRING HUS-537423401
...
537423201
STARTER PULLEY HUS-537423201
...
537093101
RETURN SPRING HUS-537093101
...
503890601
Air Conductors HUS-598007601
...
505305125
STARTER ROPE HUS-505305125
...
537423301
DRIVER HUS-537423301
...
537232501
HANDLE HUS-537232501
...
537283201
SLEEVE HUS-537283201
...
503217321
SCREW HUS-503217321
...
503212810
SCREW HUS-503212810
...
537423001
STARTER HOUSING HUS-537423001

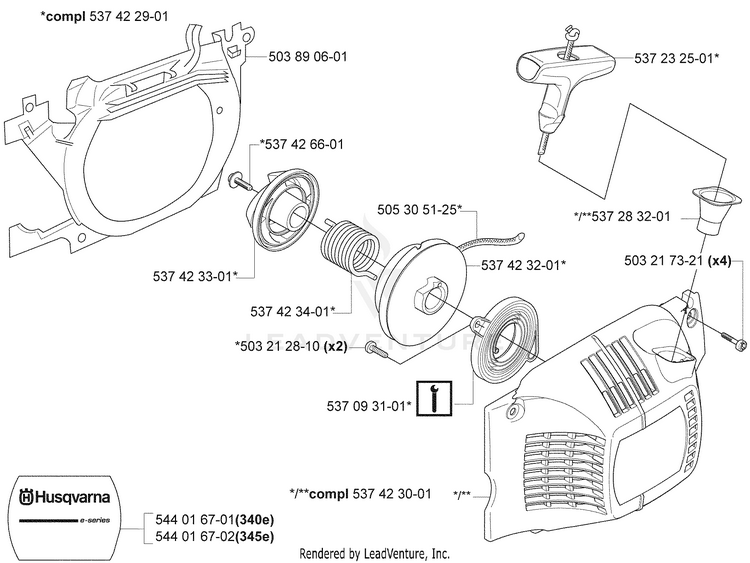

Schematic Image Zoomed
