Husqvarna 345 e (2005-05) Chain Saw

Model: 345 e (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

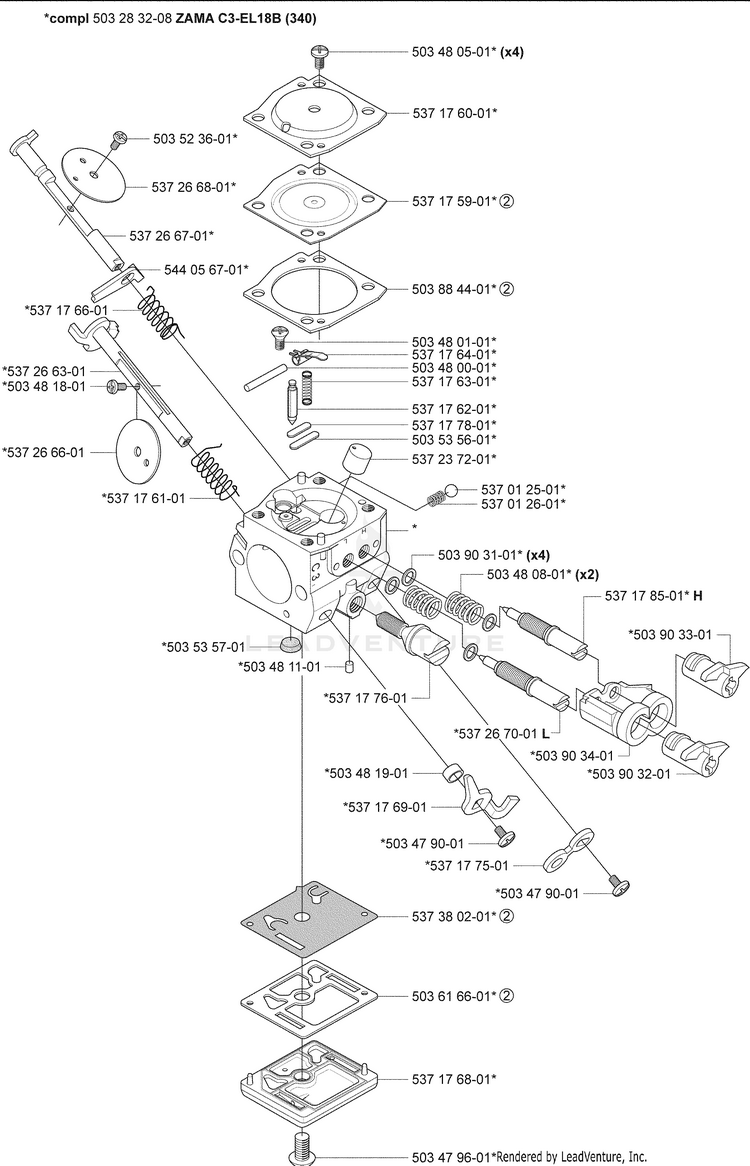

Carburetor Parts and Zama C3-EL18B

...
...
537380301
GASKET SET HUS-537380301
...
503480501
SCREW HUS-503480501
...
537176001
COVER HUS-537176001
...
537175901
DIAPHRAGM HUS-537175901
...
503884401
Gasket HUS-503884401
...
503480101
SCREW HUS-503480101
...
537176401
LEVER HUS-537176401
...
503480001
PIN HUS-537020801
...
537176301
SPRING HUS-537176301
...
537176201
VALVE HUS-537176201
...
537237201
JET HUS-537416101
...
537012501
BALL HUS-537012501
...
537012601
SPRING HUS-537012601
...
503479601
SCREW HUS-503479601
...
537176801
COVER HUS-537176801
...
503616601
GASKET HUS-503616601
...
537380201
PUMP DIAPHRAGM HUS-537380201
...
503481901
BUSHING HUS-503481901
...
537176901
LEVER HUS-537176901
...
503479001
SCREW HUS-503479001
...
537177501
LEVER HUS-537177501
...
503479001
SCREW HUS-503479001
...
503481101
PLUG HUS-503481101
...
503535701
STRAINER HUS-503535701
...
503480801
SPRING HUS-503994301
...
537176101
SPRING HUS-537176101
...
537266301
THROTTLE SHAFT HUS-537266301
...
503481801
SCREW HUS-503481801
...
537266601
THROTTLE FLAP HUS-537266601
...
537266701
CHOKE SHAFT HUS-537266701
...
544056701
THROTTLE LOCK HUS-544056701
...
537176601
SPRING HUS-537176601
...
503523601
SCREW HUS-503523601
...
537266801
CHOKE FLAP HUS-537266801
...
537177601
IDLE SCREW HUS-537177601
...
537267001
LOW SPEED NEEDLE HUS-537267001
...
503903401
SLEEVE HUS-503903401
...
503903201
LIMITER CAP HUS-503903201
...
503903301
LIMITER CAP HUS-503903301
...
537178501
JET HUS-537178501
...
503903101
WASHER HUS-503903101
...
537177801
PLUG HUS-537177801
...
503535601
PLUG HUS-503535601
...
503283208
CARBURETOR C3-EL18 HUS-503283208
