Husqvarna 345 FX (2008-05) Brush Cutter

Model: 345 FX (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

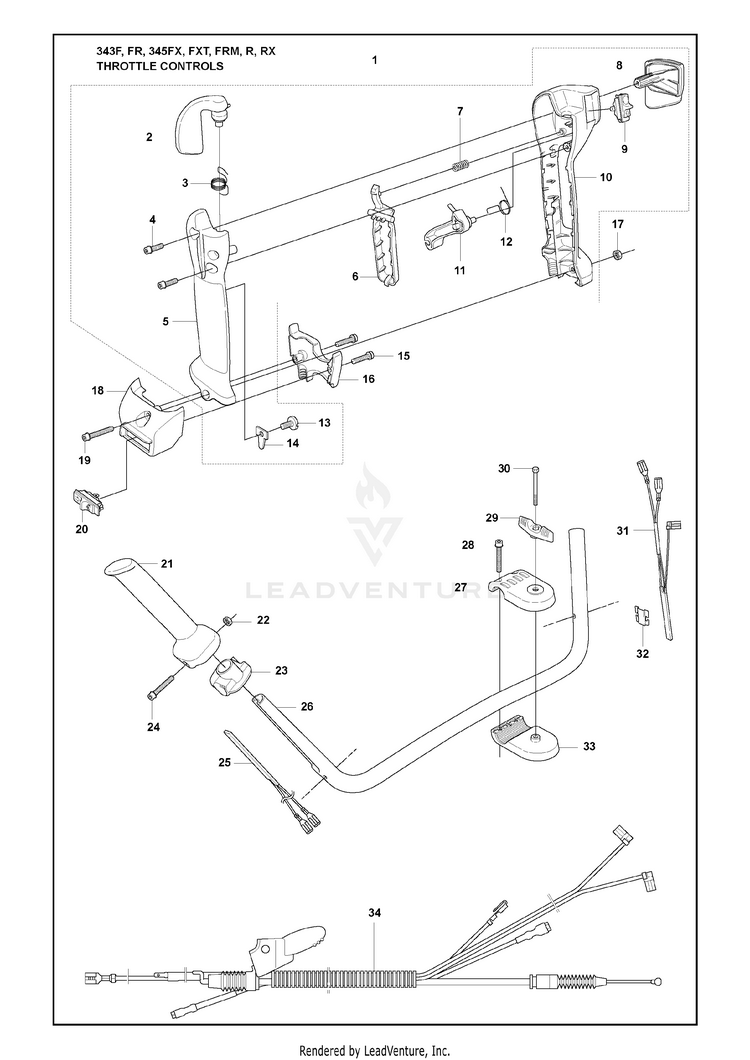

Throttle Controls

...
...
1
THROTTLE HANDLE F, Fx, FxT HUS-537197213
...
2
THROTTLE TRIGGER HUS-537263401
...
3
SPRING HUS-537353201
...
4
SCREW HUS-503217520
...
5
THROTTLE HANDLE HUS-537197213
...
6
THROTTLE LOCK HUS-537155601
...
7
SPRING HUS-537199701
...
8
COVER HUS-537182401
...
9
STOP BUTTON HUS-537419001
...
10
THROTTLE HANDLE HUS-537197213
...
11
LEVER HUS-537263501
...
12
SPRING HUS-537342701
...
13
SCREW HUS-503217010
...
14
HOLDER HUS-537251101
...
15
SCREW FxT HUS-503216618
...
16
HOLDER FxT HUS-537201601
...
17
NUT M6M M5 HUS-731231405
...
18
HOLDER FxT HUS-537201501
...
19
SCREW MC6S 5X35 F, Fx HUS-725533755
...
19
SCREW FxT HUS-503200245
...
20
SWITCH (G) FxT HUS-503718202
...
21
HANDLE F, Fx, FxT HUS-537172805
...
22
NUT M6M M5 HUS-731231405
...
23
BRACKET HUS-537172902
...
24
SCREW HUS-503200245
...
25
HEATING ELEMENT FxT HUS-537227201
...
26
RP HANDLE F, Fx HUS-503958601
...
26
KIT FxT HUS-525882002
...
27
HANDLE BRACKET HUS-537129002
...
28
SCREW HUS-503200225
...
29
HANDLE HUS-502203801
...
30
SCREW EHHM HUS-725238281
...
31
HEATING ELEMENT FxT HUS-537227101
...
32
HOLDER FxT HUS-537265101
...
33
HANDLEBAR BRACKET KIT HUS-596283301
...
34
WIRING ASSY FxT HUS-505165502
...
34
WIRING ASSY F, Fx HUS-505165501
