product name

Husqvarna 345 FX (2008-05) Brush Cutter

Model: 345 FX (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

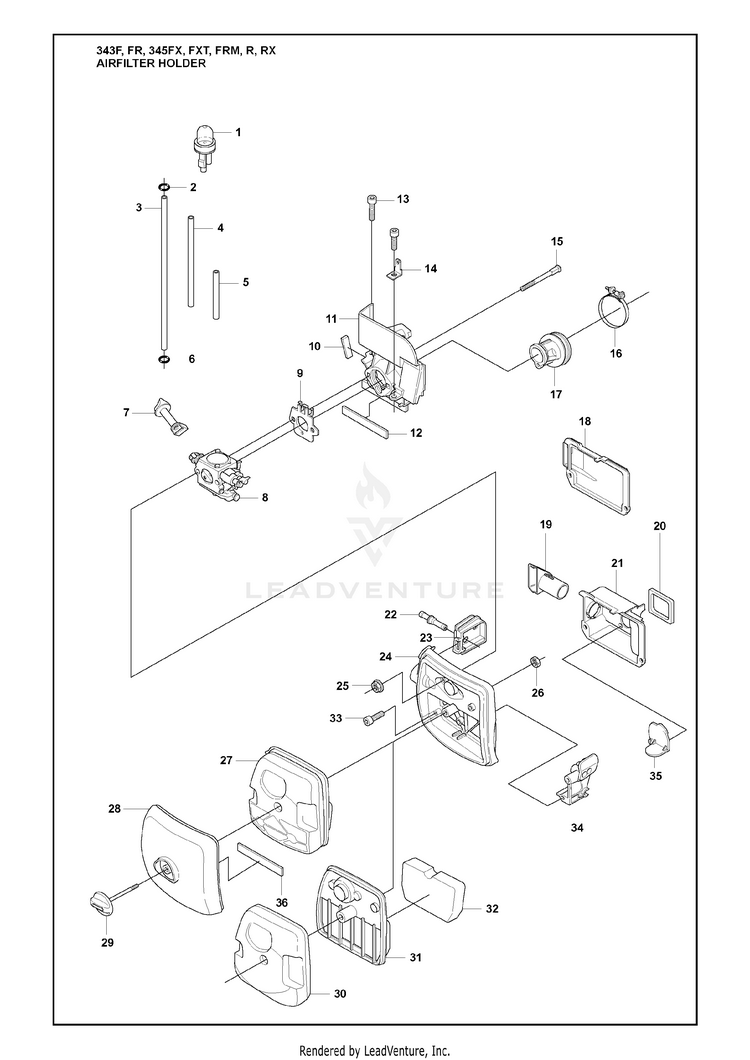

Airfilter Holder

...
...
1
AIR PURGE BUBBLE HUS-503936601
...
2
O-RING HUS-537184901
...
3
FUEL HOSE L=160 mm HUS-581756123
...
4
HOSE.FUEL L=102 L=102 mm HUS-537042401
...
5
SUCTION HOSE L=35 mm HUS-581756140
...
6
O-RING HUS-537184901
...
7
CHOKE CONTROL HUS-537110001
...
8
CARBURETOR Zama C1Q-EL21 HUS-503283116
...
8
CARBURETOR Zama C1Q-EL23, 343R South America HUS-503283118
...
9
SPACER WASHER HUS-537110101
...
10
SEAL HUS-537229602
...
11
PARTITION HUS-537300201
...
12
SEAL HUS-537229601
...
13
SCREW HUS-503200320
...
14
PIN HUS-503238802
...
15
SCREW HUS-544082002
...
16
HOSE CLAMP HUS-505283309
...
17
PIPE HUS-503958301
...
18
COVER FR, FRM, R, Rx HUS-537276101
...
19
AIR CONDUCTOR F, Fx, FxT HUS-537141501
...
20
SEAL F, Fx, FxT HUS-537309301
...
21
AIR CAN F, Fx, FxT HUS-537109902
...
22
PIPE HUS-537284601
...
23
GROMMET HUS-537165901
...
24
FILTER HOLDER HUS-503958101
...
25
NUT HUS-731711451
...
26
NUT M6M M5 HUS-731231405
...
27
AIR FILTER µ80 Black F, Fx, FxT HUS-537381101
...
28
FILTER COVER ASSY HUS-505198501
...
29
HANDLE AIR FILTER COVER HUS-537213212
...
30
COVER R, Rx, FR, FRM HUS-503958001
...
31
BASE R, Rx, FR, FRM HUS-503957901
...
32
AIR FILTER R, Rx, FR, FRM HUS-537427101
...
33
SCREW HUS-503200320
...
34
SCREW DRIVER GUIDE HUS-537141301
...
35
COVER F, Fx, FxT, FR HUS-537141401
...
36
SEAL HUS-537229603
