Husqvarna 345 FX (2008-05) Brush Cutter

Model: 345 FX (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

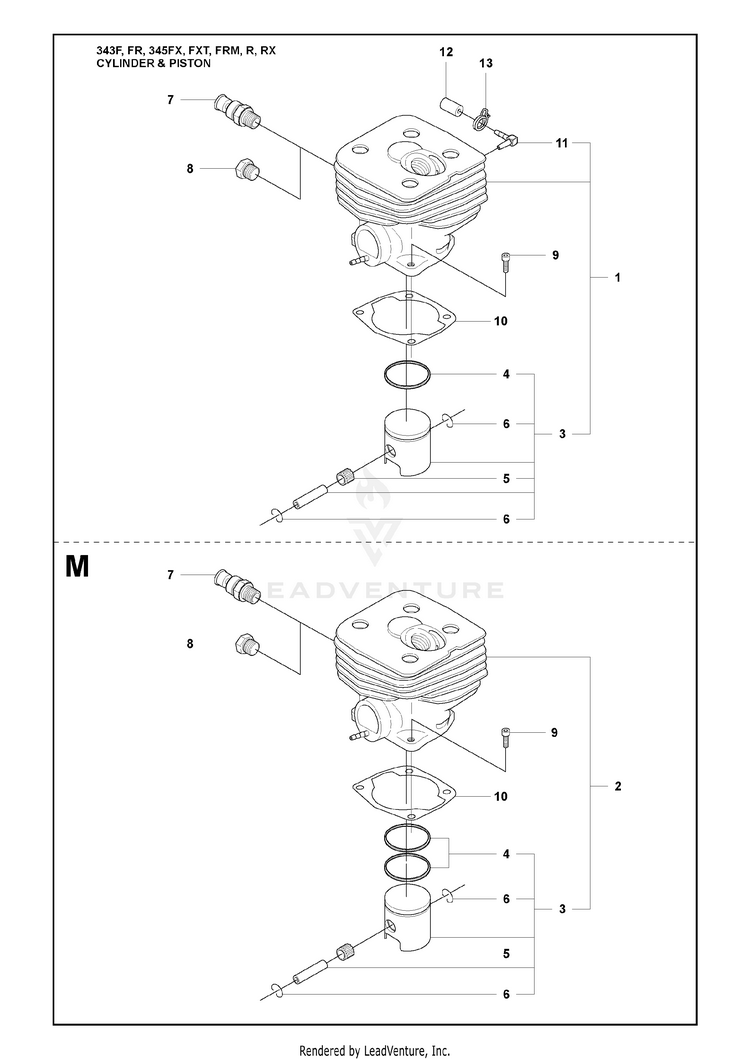

Cylinder & Piston

...
...
1
CYLINDER ASSY Fx, FxT dia.41mm 43cc HUS-505108502
...
2
CYLINDER ASSY F, FR, FRM, R, Rx dia.42mm 45cc HUS-505034804
...
3
PISTON ASSEMBLY Fx, FxT dia.41mm 43cc HUS-537159402
...
3
PISTON ASSY F, FR, FRM, R, Rx dia.42mm 45cc HUS-544093004
...
4
PISTON RING Fx, FxT dia.41mm 43cc HUS-503289045
...
4
PISTON RING F, FR, FRM, R, Rx dia.42mm 45cc HUS-506449401
...
5
SUPPORT BUSHING HUS-501451601
...
6
LOCKING RING HUS-737441000
...
7
DECOMPRESSION VALVE HUS-544200001
...
8
CYLINDER PLUG HUS-503552201
...
9
SCREW ITXSCM HUS-525824902
...
10
GASKET HUS-502438001
...
11
NIPPLE Fx, FxT HUS-504340004
...
12
PROTECTIVE CAP Fx, FxT HUS-537180001
...
13
CLAMP Fx, FxT HUS-537320901
