Husqvarna 345 FX (2008-05) Brush Cutter

Model: 345 FX (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

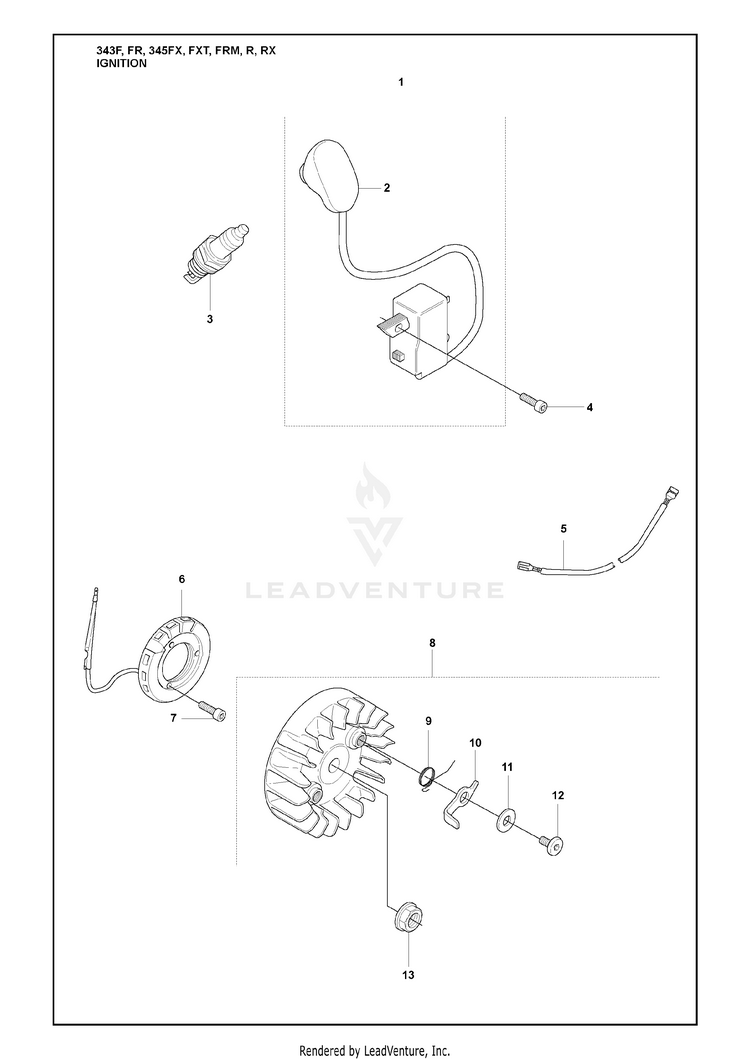

Ignition

...
...
1
IGNITION MODULE F, Fx, FxT HUS-501001301
...
1
IGNITION MODULE R, Rx, FR, FRM HUS-501001302
...
2
CAP HUS-537237301
...
3
PLUG SPARK (RCJ6-Y) Champion RCJ 6Y HUS-530030179
...
4
SCREW HUS-503202516
...
5
SHORTING LEAD HUS-537391001
...
6
GENERATOR FxT HUS-537256301
...
7
SCREW FxT HUS-503216618
...
8
FLYWHEEL F, Fx, R, Rx, FR, FRM HUS-503953301
...
8
Flywheel FxT HUS-503953302
...
9
SPRING PAWL HUS-503812902
...
10
STARTER PAWL HUS-503812401
...
11
WASHER HUS-503230042
...
12
SCREW HUS-501819903
...
13
NUT W/ WASHER HUS-503220401
