Husqvarna 345 (20070100001-Current) Chain Saw

Model: 345 (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

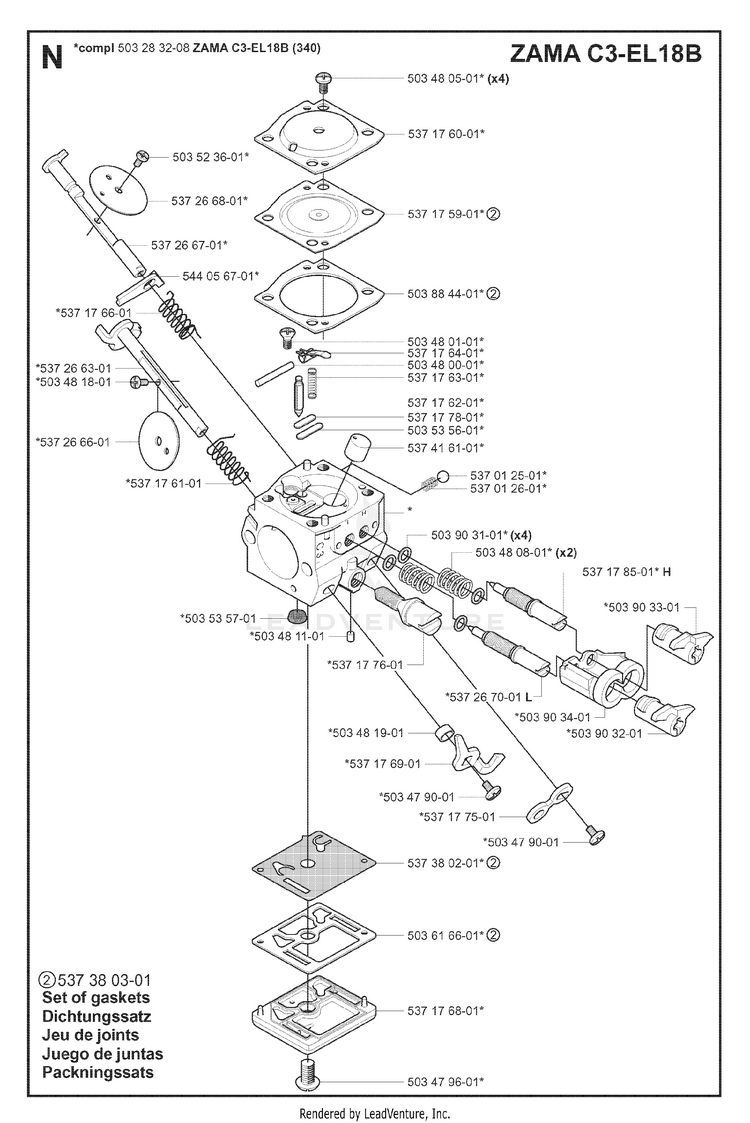

CARBURETOR 2

...
...
503 47 96-01
SCREW HUS-503479601
...
503 52 36-01
SCREW HUS-503523601
...
503 53 57-01
STRAINER HUS-503535701
...
503 48 05-01
SCREW HUS-503480501
...
537 17 63-01
SPRING HUS-537176301
...
537 17 59-01
DIAPHRAGM HUS-537175901
...
503 48 11-01
PLUG HUS-503481101
...
537 17 62-01
VALVE HUS-537176201
...
503 90 34-01
SLEEVE HUS-503903401
...
503 90 31-01
WASHER HUS-503903101
...
503 88 44-01
Gasket HUS-503884401
...
503 47 90-01
SCREW HUS-503479001
...
503 61 66-01
GASKET HUS-503616601
...
537 26 67-01
CHOKE SHAFT HUS-537266701
...
537 17 78-01
PLUG HUS-537177801
...
503 48 19-01
BUSHING HUS-503481901
...
503 48 01-01
SCREW HUS-503480101
...
537 17 61-01
SPRING HUS-537176101
...
503 48 18-01
SCREW HUS-503481801
...
537 17 75-01
LEVER HUS-537177501
...
537 01 25-01
BALL HUS-537012501
...
503 48 00-01
PIN HUS-537020801
...
503 48 08-01
SPRING HUS-503994301
...
537 26 68-01
CHOKE FLAP HUS-537266801
...
503 90 33-01
LIMITER CAP HUS-503903301
...
537 17 64-01
LEVER HUS-537176401
...
537 26 66-01
THROTTLE FLAP HUS-537266601
...
544 05 67-01
THROTTLE LOCK HUS-544056701
...
537 26 63-01
THROTTLE SHAFT HUS-537266301
...
503 90 32-01
LIMITER CAP HUS-503903201
...
537 41 61-01
JET HUS-537416101
...
503 28 32-08
CARBURETOR C3-EL18 HUS-503283208
...
537 17 69-01
LEVER HUS-537176901
...
537 38 02-01
PUMP DIAPHRAGM HUS-537380201
...
537 17 60-01
COVER HUS-537176001
...
537 17 68-01
COVER HUS-537176801
...
537 17 76-01
IDLE SCREW HUS-537177601
...
503 53 56-01
PLUG HUS-503535601
...
537 26 70-01
LOW SPEED NEEDLE HUS-537267001
...
537 17 66-01
SPRING HUS-537176601
...
537 17 85-01
JET HUS-537178501
...
537 01 26-01
SPRING HUS-537012601
