Husqvarna 343 F (2008-05) Brush Cutter

Model: 343 F (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

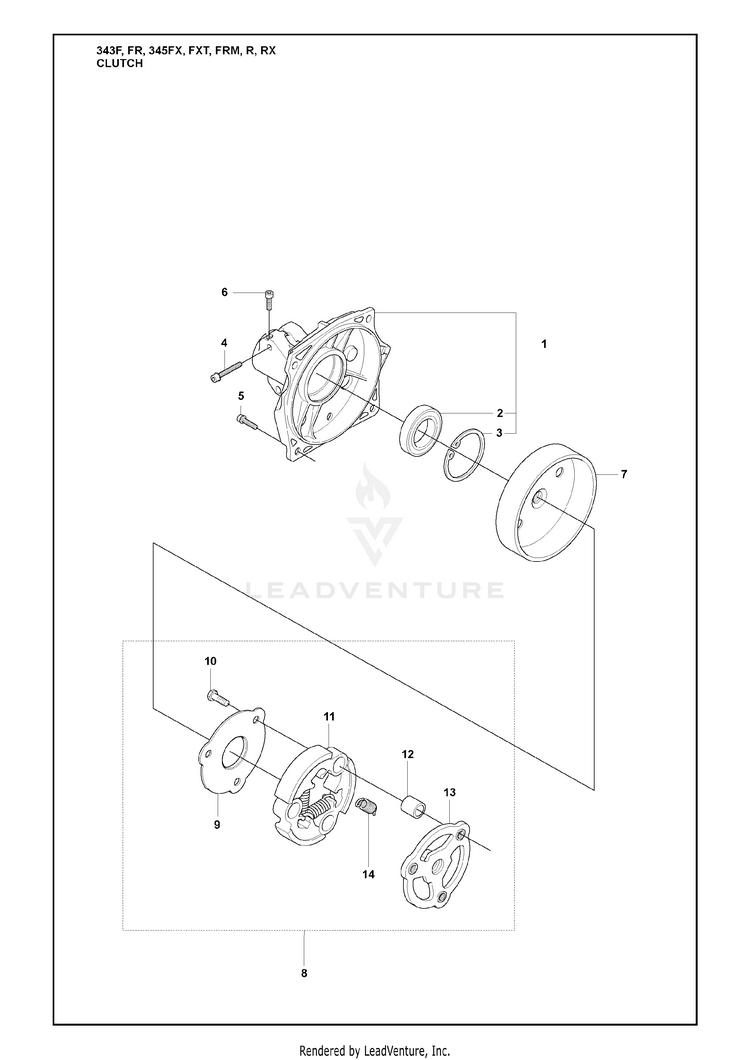

Clutch

...
...
1
COVER, CLUTCH HUS-503954104
...
2
BALL BEARING 6202-2RS1 HUS-738220219
...
3
RETAINING RING SGH 35 HUS-735313310
...
4
SCREW HUS-503200230
...
5
SCREW HUS-503200220
...
6
SCREW MC6LS 5X12 HUS-503202001
...
7
CLUTCH DRUM ASSM. HUS-544900701
...
8
Clutches HUS-594512301
...
9
WASHER HUS-537135301
...
10
SCREW HUS-503201802
...
11
CLUTCH HUS-503953601
...
12
BUSHING HUS-537135401
...
13
HUB HUS-503953701
...
14
CLUTCH SPRING dia.1.7mm HUS-505435302
