Husqvarna 343 F (2008-05) Brush Cutter

Model: 343 F (2008-05)

Back To Assemblies

Save Part Not Listed?

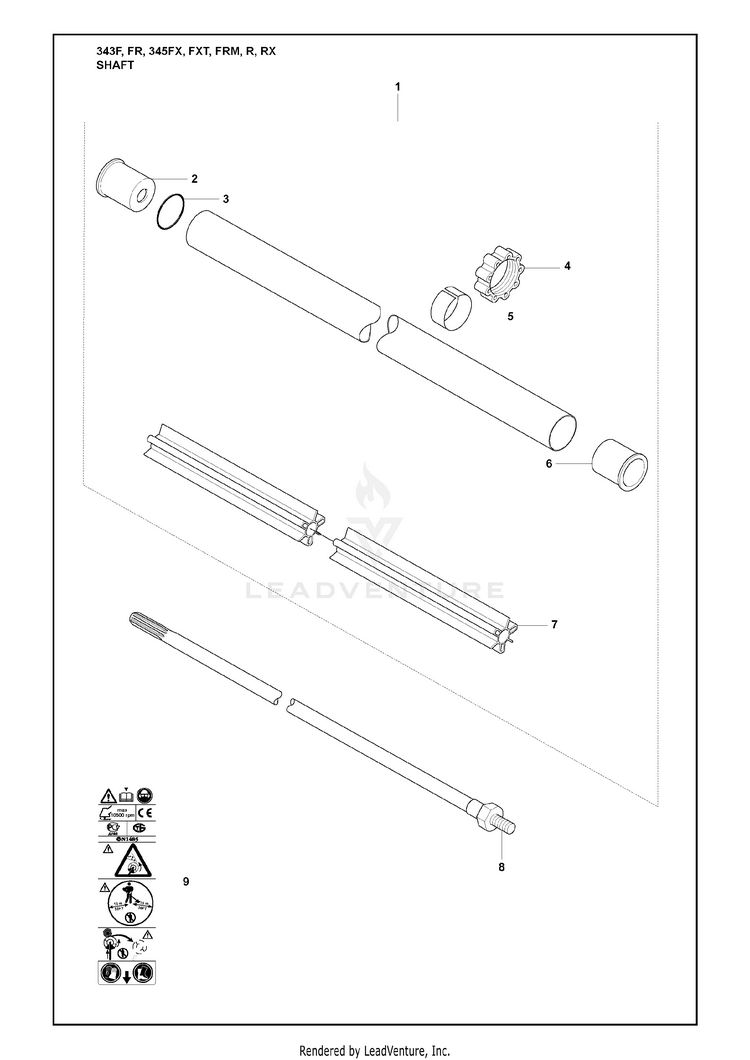

product name

Shaft

...
...
1
Tubes F, Fx, FxT L=1354 dia.32,2 HUS-586262614
...
1
TUBE ASSY R, Rx L=1465 dia.32,2 HUS-586262602
...
1
Tubes FR, FRM L=1384 dia.32,2 HUS-586262611
...
2
SPACER SLEEVE HUS-544029401
...
3
O-RING HUS-506110301
...
4
MOVEMENT LIMITER HUS-537309801
...
5
BAND HUS-537309702
...
6
SPACER SLEEVE F, FR, Fx, FxT, FRM HUS-544029401
...
7
GUIDE F, Fx, FxT, R, Rx, FRM HUS-505444301
...
7
GUIDE FR HUS-505444304
...
8
SHAFT F, Fx, FxT L=1401 dia.9, hollowed HUS-503955401
...
8
SHAFT R, Rx, FRM L=1512 dia.9, hollowed HUS-503955402
...
8
SHAFT F, Fx, FxT L=1401 dia.9, solid HUS-503955401
...
8
SHAFT R, Rx, FRM L=1512 dia.9, solid HUS-503924402
...
8
DRIVE SHAFT FR L=1431 dia.9, solid HUS-503924403
...
9
DECAL HUS-537294707
...
9
WARNING DECAL US, Can HUS-537294703
