Husqvarna 3420-54 (1995) Tractor

Model: 3420-54 (1995)

Back To Assemblies

Save Part Not Listed?
product name

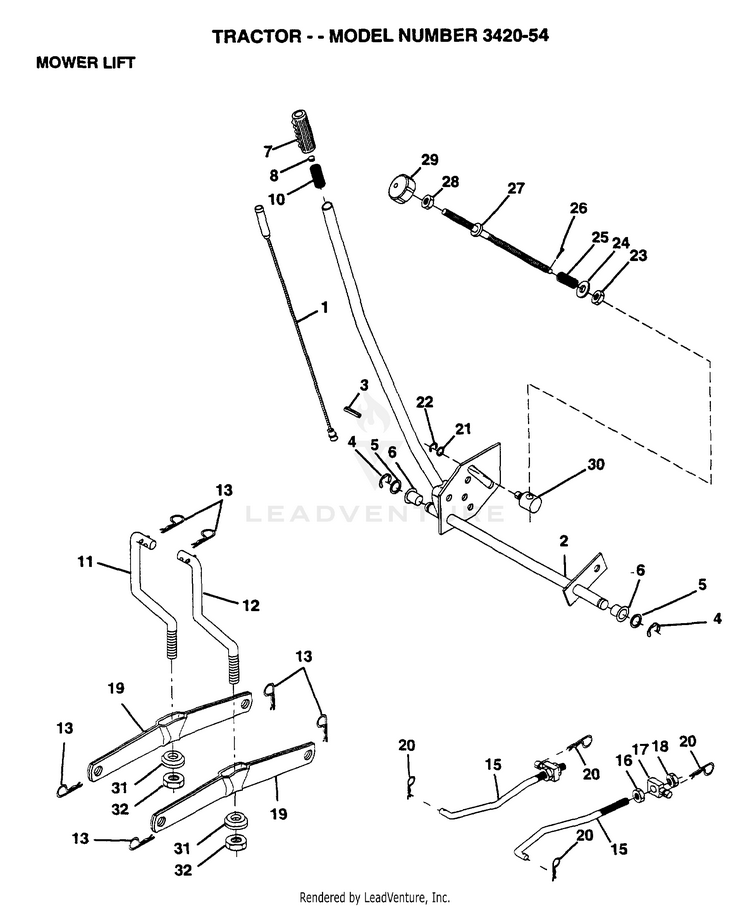

MOWER LIFT

...
...
1
WIRE ASM HUS-136973
...
2
SHAFT.ASM.LIFT LH HUS-137111
...
3
PIN GROOVE HUS-138284
...
4
SUB= 2225J HUS-12000002
...
5
WASHER HUS-19211416
...
6
NYLON BEARING HUS-120183X
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
10
SUB= 532122512 HUS-122512X
...
11
SUB= 918139865 HUS-139865
...
12
SUB= 151140 HUS-139866
...
13
SUB= 85902 HUS-4939M
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
ARM SUSP REAR HUS-139868
...
20
CLIP HAIRPIN HUS-3146P
...
21
WASHER HUS-19151216
...
22
KLIP RING HUS-12000037
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING.COMP.INF.H HUS-137150
...
26
SUB= 3145 HUS-76020308
...
27
ROD.ADJ.LIFT HUS-137167
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNION LT HUS-110810X
...
31
BEARING PVT LH HUS-140302
...
32
NUT.CROWNLOCK.3/8 HUS-73540600
