Husqvarna 3420-54 (1995) Tractor

Model: 3420-54 (1995)

Back To Assemblies

Save Part Not Listed?
product name

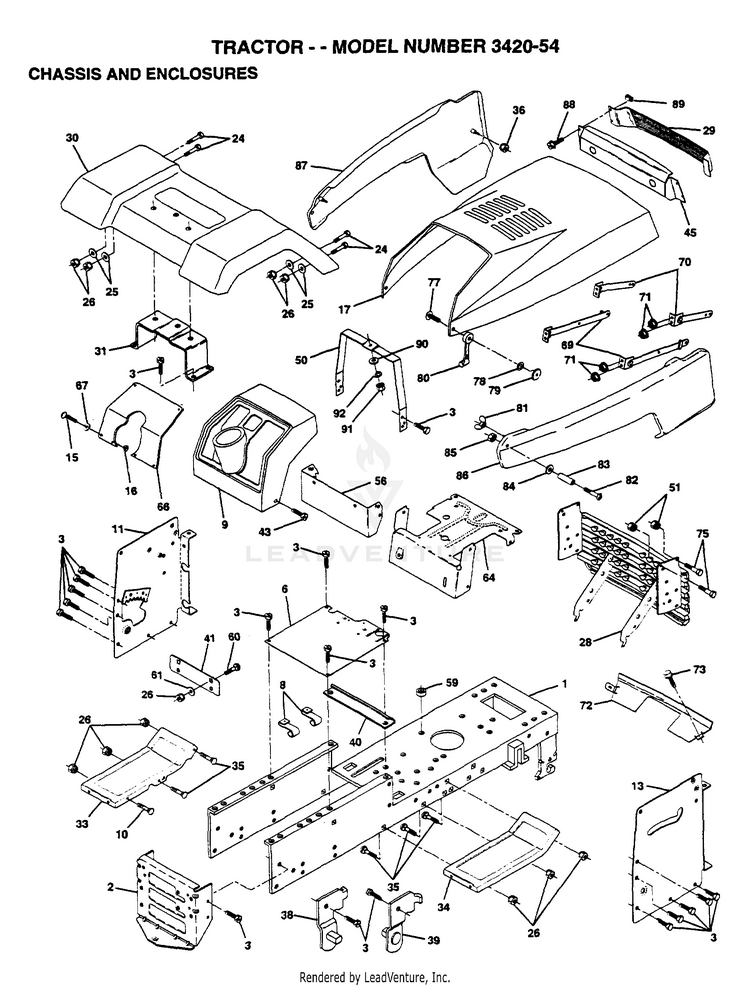

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
DRAWBAR, STRETCH HUS-140346
...
3
SCREW HUS-17490612
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASHBOARD BLACK HUS-140398
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH.PNT HUS-145230
...
13
PANEL.DASH.RH. HUS-145219
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
SUB= 150301X424 HUS-132635X424
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
SUB= 532131716 HUS-131716
...
29
LENS LT HUS-106395X
...
30
FENDER YT/GT HUS-140002X424
...
31
BRACKET SUPT FEND HUS-139976
...
33
FOOTREST.LH.LT/GT HUS-145244X424
...
34
FOOTREST.RH.LT/GT HUS-145243X424
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
45
SUB= 147717 HUS-124392X417
...
50
DASH.SUPT.YP/HUSQ HUS-145205
...
51
SUB= 73690400 HUS-73680400
...
59
SUB= 9151R HUS-110436X
...
60
BOLT HUS-72140606
...
61
WASHER HUS-19171416
...
64
SUB= 150272 HUS-145095
...
66
PLATE.SILKSCREEN HUS-140300X012
...
67
WASHER HUS-19111116
...
69
SUB= 155013 HUS-106784X
...
70
SUB= 155013 HUS-104618X
...
71
NUT HXKEP 1/4X20 HUS-73640400
...
72
STRAP.GRILLE.424 HUS-144916X424
...
73
SCREW CRT HUS-17580408
...
75
SUB= 7605J HUS-123481X
...
77
SCREW HUS-74191008
...
78
LOCKWASHER HUS-10071000
...
79
WELDNUT HUS-2029J
...
80
HOOD LATCH T HUS-109808X
...
81
WINGNUT.1/20.NYL. HUS-146525
...
82
SCREW HUS-74981020
...
83
SPACER LT HUS-7206J
...
84
WASHER HUS-19070818
...
85
NUT HUS-73731000
...
86
PANEL.SIDE.RH HUS-137655X424
...
87
"PANEL,SIDE LH" HUS-132637X424
...
88
SCREW LT HUS-17211010
...
89
"""J"" FASTENER LT" HUS-104755X
...
90
WASHER PM HUS-19091216
...
91
SUB= 50675 HUS-73220400
...
92
LOCKWASHER HUS-10040400
...
129
DASH.EXT.PNT. HUS-145151
