product name

Husqvarna 3420-24 (1992) Tractor

Model: 3420-24 (1992)

Back To Assemblies

Save Part Not Listed?
product name

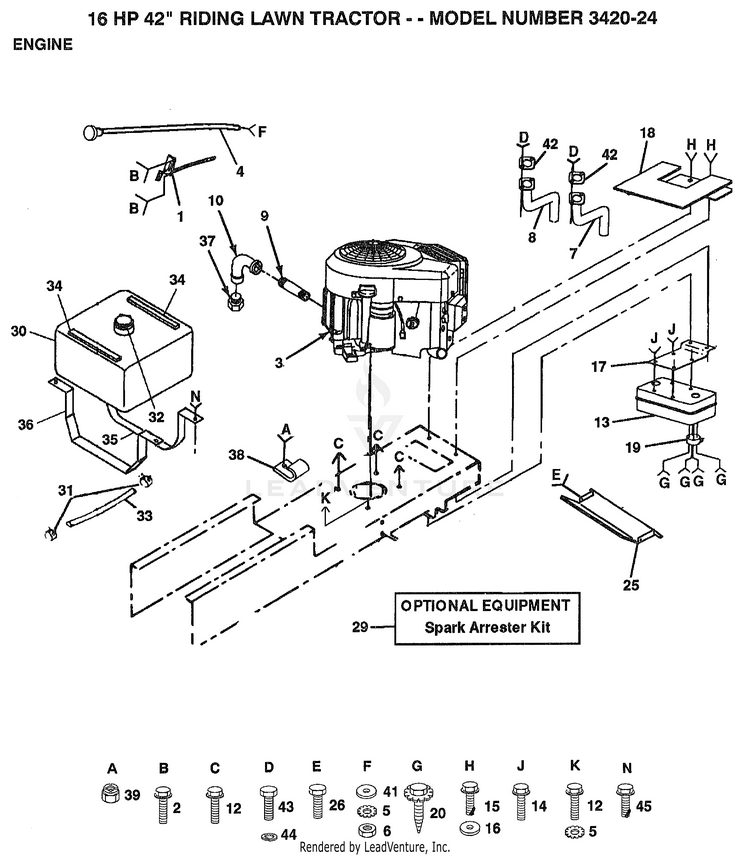

ENGINE

...
...
1
SUB= 532132748 HUS-132747
...
2
SCREW LT HUS-17720410
...
4
CHOKE CONTROL HUS-132781
...
5
LOCKWASHER HUS-11050600
...
6
SUB= 7810H HUS-73610600
...
7
SUB= 144068 HUS-129466
...
8
SUB= 136989 HUS-129465
...
9
PIPE NIPPLE LT HUS-13280336
...
10
ELBOW HUS-13200300
...
12
SCREW LT HUS-17490624
...
13
MUFFLER HUS-129464
...
14
SCREW ST HUS-17190408
...
15
SCREW HUS-17490512
...
16
WASHER HUS-19132012
...
17
BRACKET MUFFLER HUS-122439X
...
18
SUB= 145552 HUS-128199
...
19
DEFLECTOR.222573 HUS-101326L
...
20
SUB= 17030814 HUS-17030808
...
25
HEAT SHIELD HUS-128953
...
26
SCREW HUS-17021008
...
29
SUB= 532137180 HUS-121851X
...
30
SUB= 141291 HUS-127813
...
31
HOSE CLAMP HUS-123487X
...
32
"ARM,SHIFT" HUS-123539X
...
33
SUB= 8542R HUS-7834R
...
34
"STRIP,FORM" HUS-126564X
...
35
"STRAP,TANK " HUS-127530
...
36
"STRAP,TANK" HUS-123803X
...
38
CLIP T HUS-2751R
...
39
SUB= 73690600 HUS-73680600
...
41
WASHER HUS-19131316
...
42
SUB= 272250 HUS-8545J
...
43
SUB= 74780414 HUS-74780412
...
44
LOCKWASHER HUS-10040400
...
45
SCREW LT HUS-17490608
