Husqvarna 340i Chain Saw

Model: 340i

Back To Assemblies

Save Part Not Listed?
product name

ELECTRICAL

...
...
4
SCREW HUS-526221801
...
10
NEEDS DESCRIPTION For Mechanical User Interface variant HUS-599138701
...
5
NEEDS DESCRIPTION For Mechanical User Interface variant HUS-596943001
...
12
NEEDS DESCRIPTION For Mechanical User Interface variant HUS-598402401
...
1
TRIGGER SWITCH IPX4 For Mechanical User Interface variant HUS-582050701
...
10
CONTROL UNIT For Digital User Interface variant HUS-599138602
...
16
Control Panels For Digital User Interface variant HUS-593914901
...
5
Wiring Harness For Digital User Interface variant HUS-596786701
...
13
SCREW KIT 4 PACK HUS-575532001
...
9
SCREW ITXSCFM M5X8 T27 10.9 Z HUS-525755107
...
12
Motor For Digital User Interface variant HUS-598402301
...
2
Switches HUS-593954101
...
3
NEEDS DESCRIPTION HUS-596627701
...
15
Fans HUS-593782601
...
7
Wiring Harness HUS-593083801
...
8
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
14
THROTTLE ROD ASSY For Mechanical User Interface variant HUS-577855101

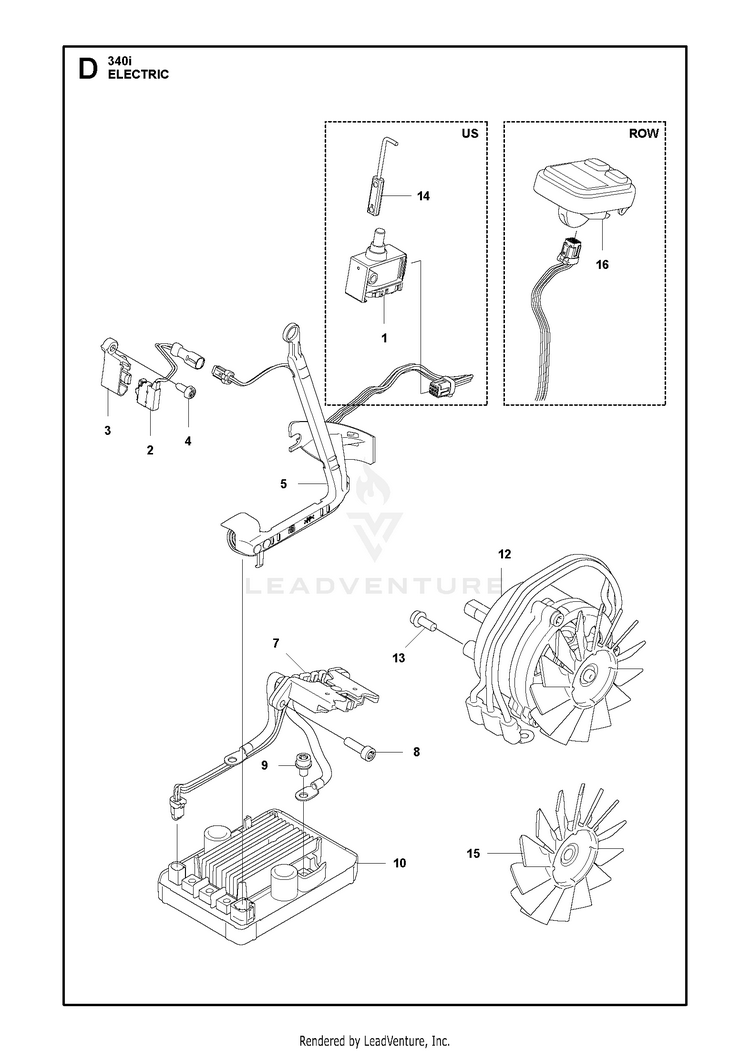

Schematic Image Zoomed
