Husqvarna 340 e (2006-06) Chain Saw

Model: 340 e (2006-06)

Back To Assemblies

Save Part Not Listed?

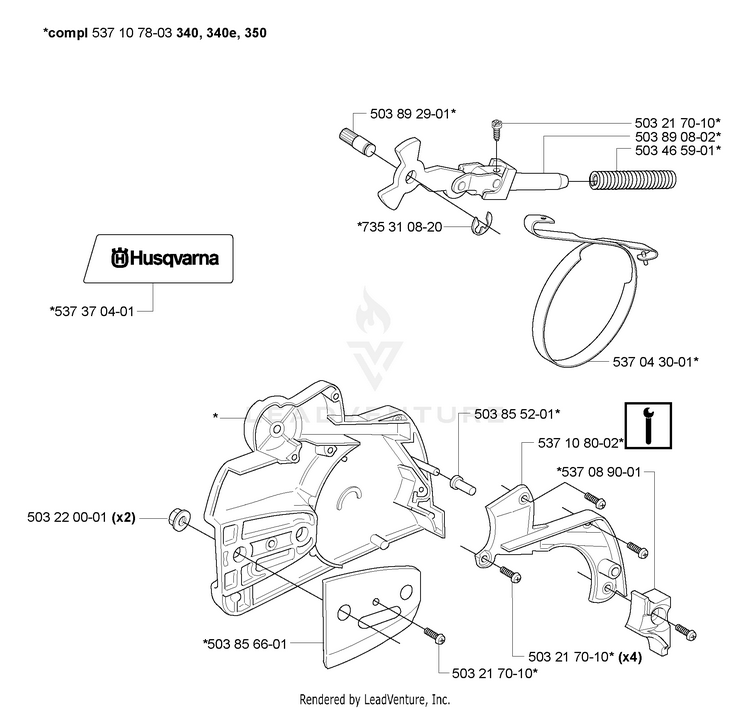

product name

Chain Brake

...
...
503217010
SCREW HUS-503217010
...
503220001
NUT M8 FLANGE HUS-503220001
...
503465901
SPRING HUS-503465901
...
503855201
SLEEVE HUS-503855201
...
503856601
PLATE HUS-503856601
...
503890802
JOINT HUS-503890802
...
503892901
PIN HUS-503892901
...
537043001
BRAKE BAND HUS-537043001
...
537089001
PROTECTOR HUS-537089001
...
537107803
CHAIN BRAKE HUS-537107803
...
537108002
COVER HUS-537108002
...
537370401
DECAL HUS-537370401
...
735310820
E-RING 4 HUS-735310820
