product name

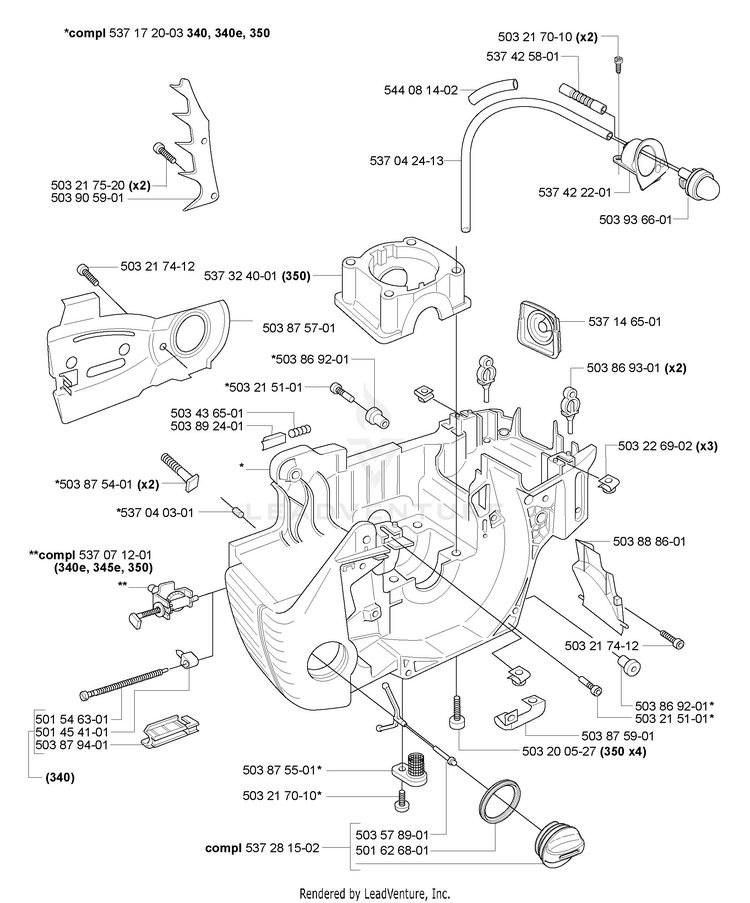

Husqvarna 340 e (2006-06) Chain Saw

Model: 340 e (2006-06)

Back To Assemblies

Save Part Not Listed?
product name

Crankcase

...
...
501454101
PAWL HUS-501454101
...
501546301
SCREW HUS-501546301
...
501626801
OILCAP GASKET HUS-501626801
...
503200527
SCREW HUS-503200527
...
503215101
SCREW HUS-503215101
...
503217010
SCREW HUS-503217010
...
503217412
SCREW HUS-503217412
...
503217520
SCREW HUS-503217520
...
503226902
CLIP HUS-503226902
...
503436501
LOCK SPRING HUS-503436501
...
503578901
TANK LOCK HUS-503578901
...
503869201
MOVEMENT LIMITER HUS-503869201
...
503869301
DAMPNER HUS-597909701
...
503875401
BOLT HUS-503875401
...
503875501
SCREEN HUS-503875501
...
503875701
PLATE HUS-503875701
...
503875901
EARTHING STRIP. HUS-544196401
...
503879401
HOLDER HUS-503879401
...
503888801
DRIVE TUBE ASSEMBLY HUS-503888801
...
503892401
CATCH HUS-503892401
...
503905901
SPIKE HUS-503905901
...
503936601
AIR PURGE BUBBLE HUS-503936601
...
537040301
VALVE HUS-537040301
...
537042413
HOSE HUS-537042413
...
537071201
CHAIN TENSIONER HUS-537071201
...
537146501
BELLOWS HUS-537146501
...
537172003
CRANKCASE HUS-537172003
...
537281502
OIL TANK CAP GREY HUS-537281502
...
537324001
BEARING CUP HUS-537324001
...
537422201
BRACKET HUS-537422201
...
537425801
SUCTION HOSE HUS-581756140
...
544081402
HOSE HUS-544081402
